5.7.3 Charging Supervision (ready)
For best control of time sequence of CNC machines, a charging supervision is provided.

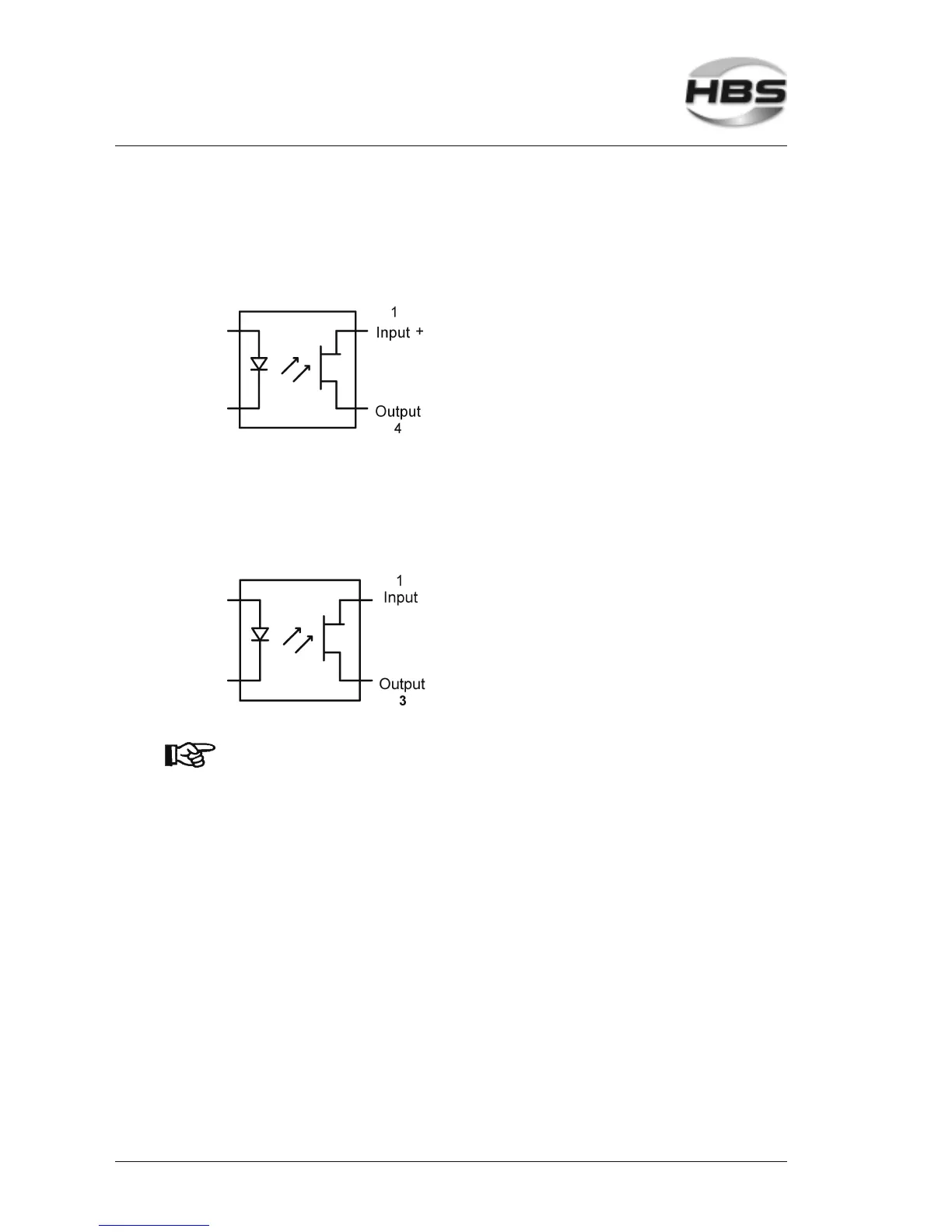

As soon as the power unit is ready for welding, the transistor is switched on (control
socket 4poles, pin 1; 4).
Operating voltage 24 V DC
Current capacity max. 50 mA
5.7.4 Contact
For best control of time sequence of CNC machines, an external contact inquiry
between work piece and welding head is provided. As soon as a contact is recognized,
the transistor is swiched on (control socket 3 poles, pin 1; 3).
Operating voltage 24 V DC
Current capacity max. 50 mA
Operating the automatic welding head KAH 412 (see operating
manual).
