4.1.2 Control Unit
The control unit synchronizes the mechanical sequence (lifting the welding element)
with the electronic control (ignition of pilot arc, ignition of main arc, sequence of welding
time). The welding time is stepless adjustable.

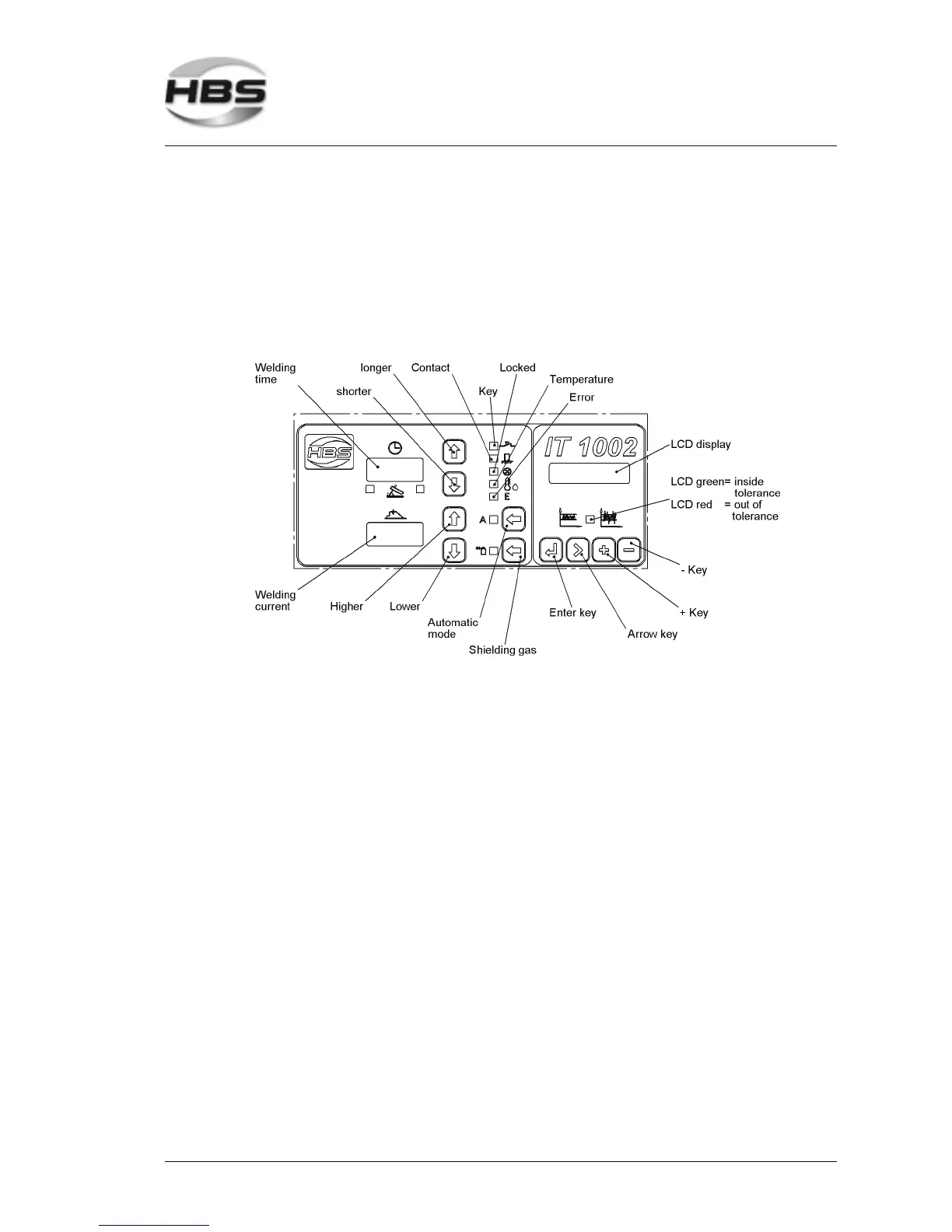

4.2 Keyboard and Display
How to use displays and keys is described in section 5.6.
4 Function
4.2 Keyboard and Display
