3.6 Compressed Air Connection for Automatic Stud Feeding
 If you use the automatic stud feeder, plug the air hose into the compressed air
supply (6 bar, 800 l/min) of the feeding unit VBZ-3.

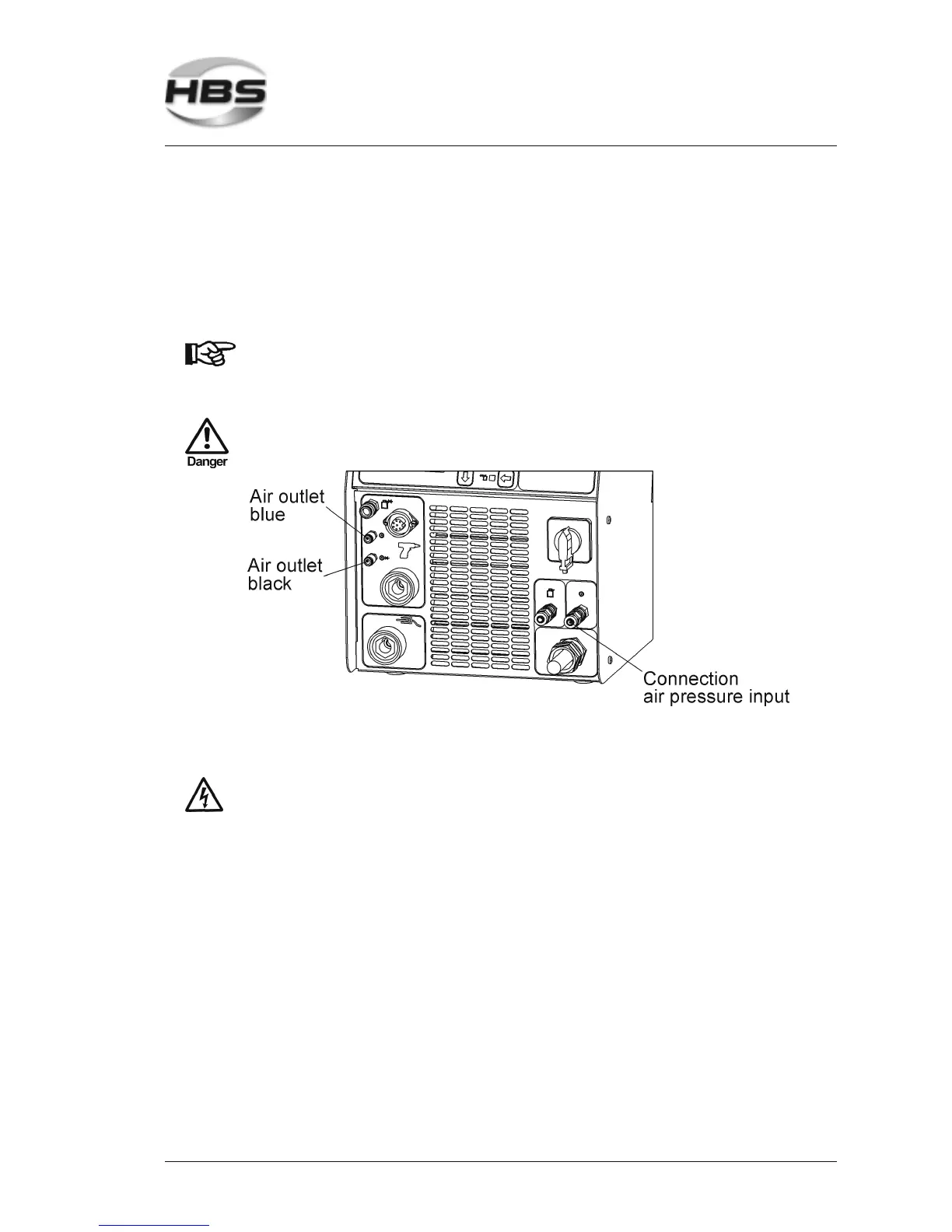

 Connect the compressed air outlet of the feeding unit to the compressed air inlet
of the power unit.
You can set the operating pressure of max. 6 bars with the
pressure reducing valve of the feeding unit. In the filter unit,
the compressed air is cleaned and drained.
You must not put the air hose into the gas valve of the power
unit! The valve would be destroyed.
3.7 Change Working Place
Switch off the power unit. In this way, you avoid any risk of
electrical shock.
 When you move your workplace, disconnect the welding gun and the ground
cables from the power unit. Proceed in reversed sequence as described in
sections 3.2, 3.3, 3.4, 3.5 and 3.6.
 After changing the workplace, check the welding gun and the ground cables for
possible damage or missing components.
