9. PD 5201, PD 5206 (figs. 47, 48)
Interface sockets (37 & 39) need to be closed with an interface plug or blind plug all
the time, not to void splash protection.
9.1. Standard functions
- Turn item ON with power switch (29) located on
the item's rear panel.
- Item runs through a processor self-test routine.
The following parameters are displayed, one after
the other:
- all display (41) bars and all Select LEDs are ON.
- pump head selected is displayed (e.g. „Pu 1).
- gearbox transmission ratio is displayed, e.g.
"5.066“"
- Tube ID selected is displayed, e.g. "3,1"
- possible backstroke is displayed, e.g. "r on".
- Item is ready to go at this point.
- Use sense of rotation key (31) to select sense of
31:
Direction of rotation
32:
Start/Stop
33:
Maximum
conveyance
34:
Calibration
35:
Change value
36:
Selection key
Bild 48
36
34
40
40
33
35
31
32
44
41

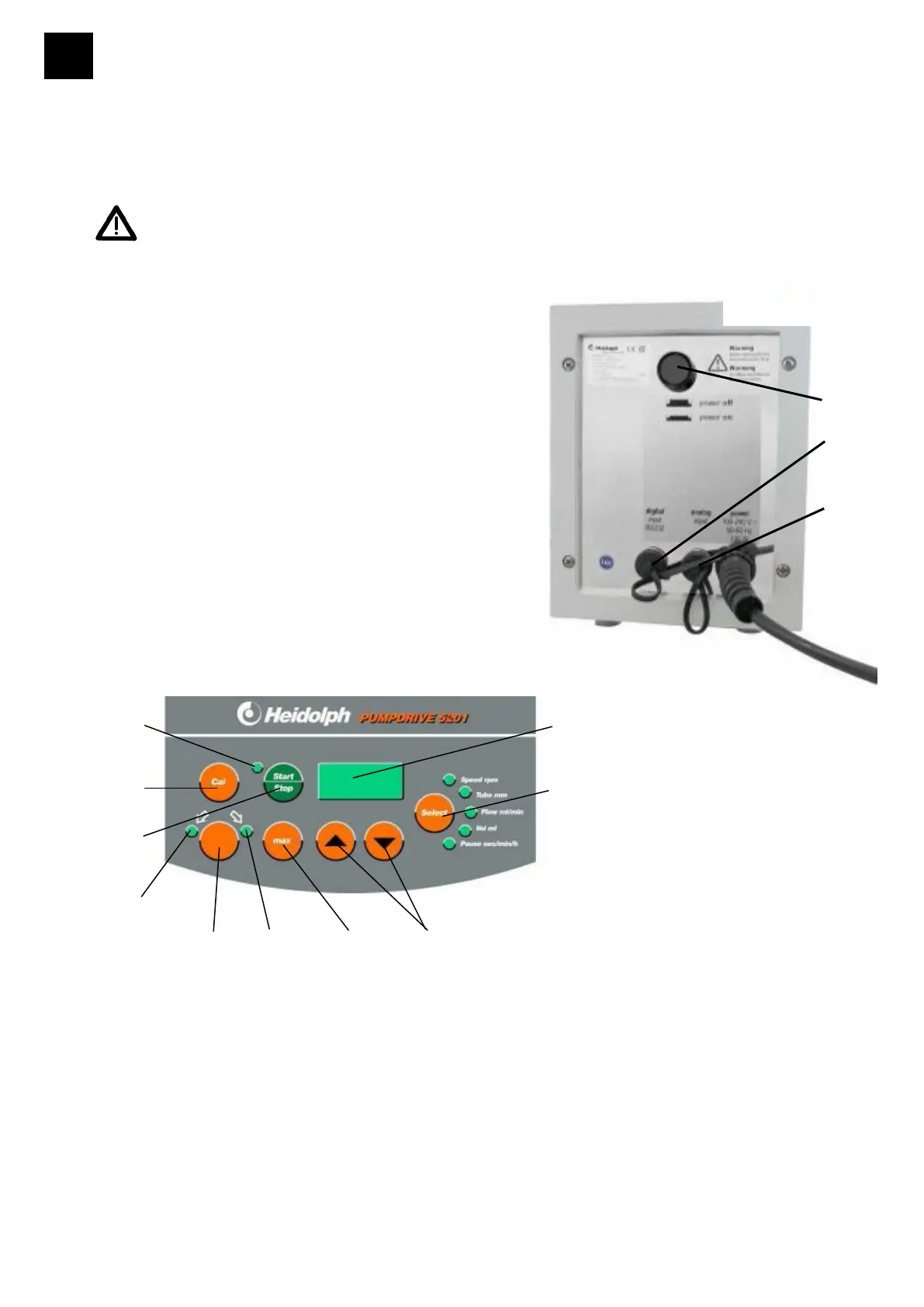

fig. 47
39
37
29
- All pump drives are resistant against water jets (IP 55).
