B. OPERATION
6. General
Before running the item, read all of the safety and general information !
Before connecting your item with your local power supply, make sure item has been
designed and wired for your voltage and frequency. Use your national standard plugs.
For more information refer to chapter "General Information".
- All pump drives are resistant against water jets (IP 55).

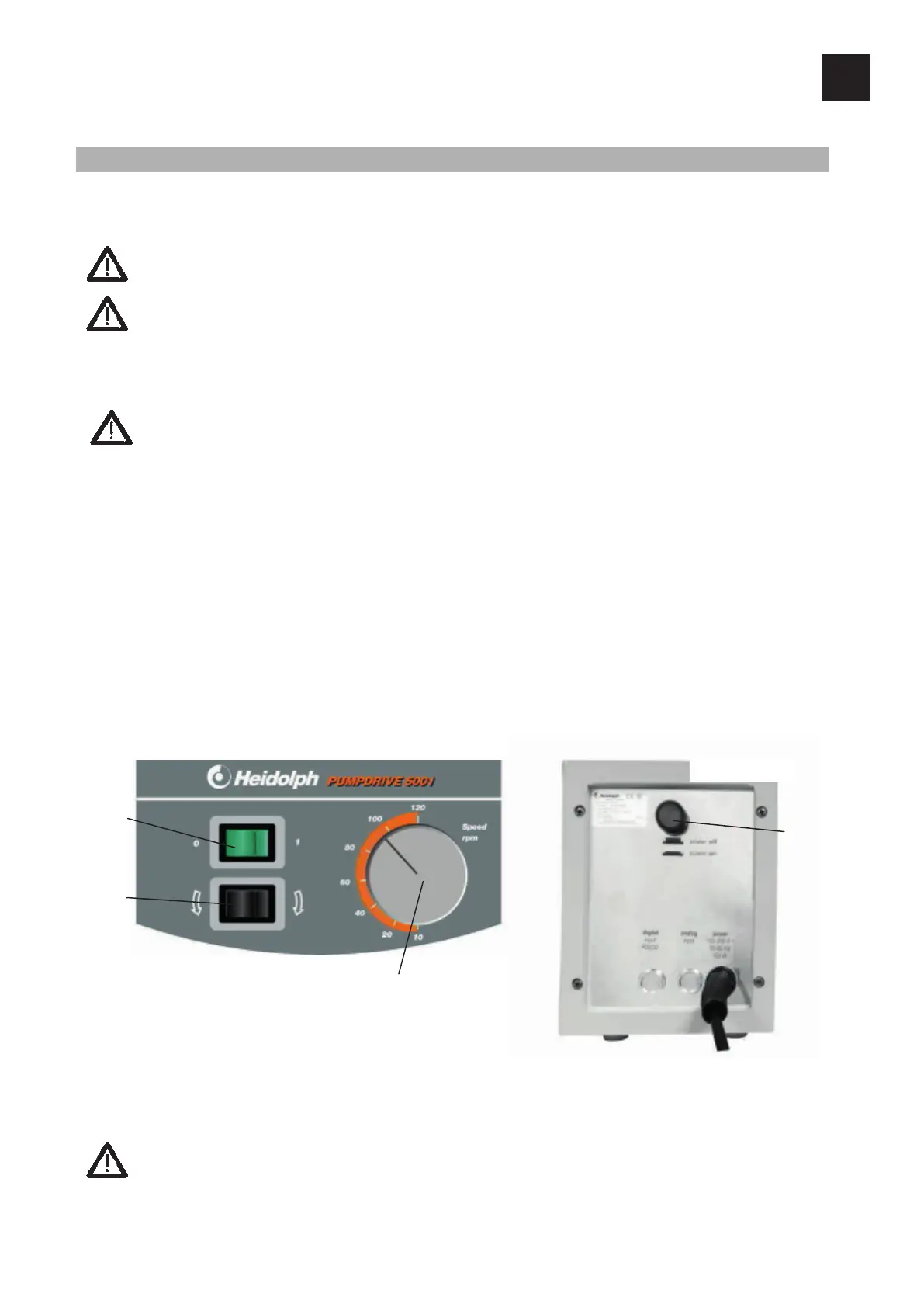

7. PD 5001, PD 5006 (figs . 42, 43)
- The "Start Stop" switch (29b) on control panel starts pump rotation.
- Select speed with selector knob (30).
- Feed rate is proportional with pump speed. Go by rpm scale on the item. For more
information about exact speed refer to reference tables in chapters 16 and 17.
- Select sense of rotation with switch (31); (go by arrow marks).
8. PD 5101, PD 5106 (figs. 44, 45)
Service work is limited to expert personnel authorized to do so by Heidolph Instruments.
Keep interface connector (37) closed all the time by either an interface plug or a
blind plug, not to void splash protection.
- Connect with mains.
- Turn item ON with power switch (29a) located on the item's rear panel.
Set speed number may vary from actual number slightly.
-
-
All pump drives are resistant against water jets (IP 55).
