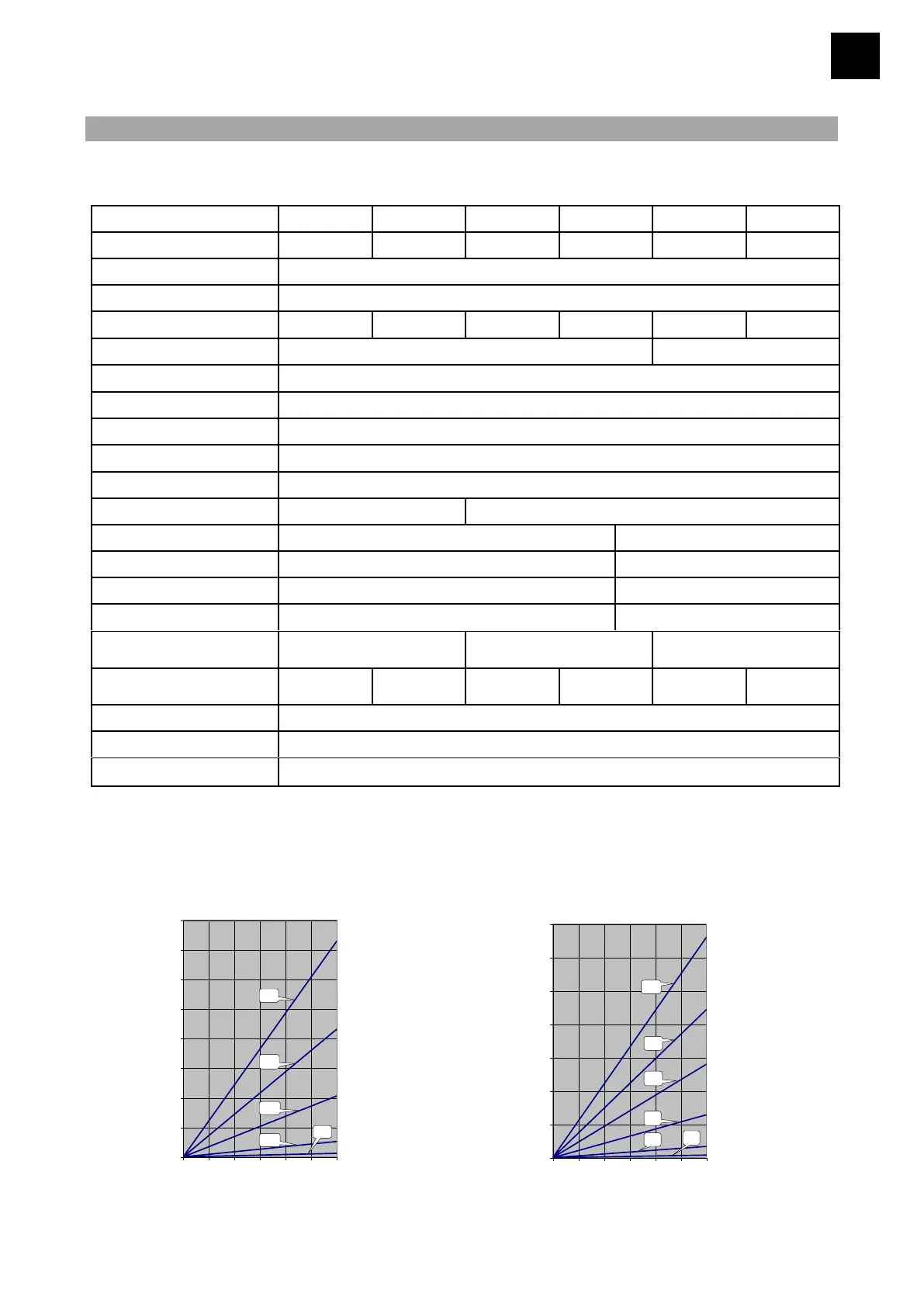

SPECIFICATIONS
15. Peristaltic pump drives
16. Feed rate graphs - for single-channel pumps
model PD 5001 PD 5006 PD 5101
PD 5106 PD 5201 PD 5206
P/N
523-50010-00
523-50060-00
523-51010-00
523-51060-00
523-52010-00
523-52060-00
electronic motor control
electronically commutated direct current (DC) motor
feed rates
refer to chapters 16 & 17
speed range (1/min)
10-120
50-600
5-120
24-600 5-120 24-600
speed control
rotary knob , scaled
4-digit digital display
speed governor
digital, with answer-back
accuracy of control
± 0,5%
sense of rotation
CW, CCW selector
motor power (W) 53
dissipated power (W) 78
interface, analog
-
-
speed: (0-10 V or 4-20 mA), sense of rotation & Start/Stop (TTL)
interface, digital
-
-
-
-
RS232
feed rate display
-
-
-
-
4-digit digital display
metering by volume (ml)
-
-
-
-
0.1-9999
interval metering (ml)
-
-
-
-
0.1-9999; pause 0,. sec-750 h
motor protector
electronic current limitation and
overheat protection
electronic current limitation and
overheat protection
weight,
pump head not included (kg)
6.8
6.2 8.2 7.6
8.3 7.7
protective class
IP55
ambient conditions
0-40 °C at 80 % rel. humidity, no dewing
size (w x d x h) (mm)
166x256x225
SP standard / SP vario
0
500
1000
1500
2000
2500
3000
3500
4000
0 100 200 300 400 500 600
Speed [1/min]
Flow rate [ml(H2O)/min]
6,3
4,8
3,1
1,7
0,8
SP quick
0
500
1000
1500
2000
2500
3000
3500
0 100 200 300 400 500 600
Speed [1/min]
Flow rate [ml(H2O)/min]
7,9
6,3
4,8
3,1
1,7
0,8
