HERO XTREME 160R PROGRAMMED FI - PARTS FUNCTION - IGNITION SWITCH

14
The LCD panel illuminates & initial display of
multi function digital segments are displayed.
The tachometer segment and the fuel gauge
segment will swing to the maximum scale once
and back to its normal position. Scroll message
and odometer will appear. The engine can be
started. Turn signal lamp, horn, tail/stop lamp,
fuel gauge, passing switch, position lamp,
programmed FI malfunction indicator lamp
(MIL) illuminates continuously, neutral indicator
& hazard switch will be functional.
Key cannot be removed.
Engine cannot be started and no electrical
system will be functional.
Key can be removed.
Steering can be locked.
Key can be removed.
“OFF” ( )
Position/Lock Open
“LOCK” Position
“ON” ( )
Position
“LOCK”
“ON” ( )
“OFF” ( )
1. Ignition switch
2. Ignition key
4. Steering lock position
5. “ON” ( ) position
3. “OFF” ( ) position

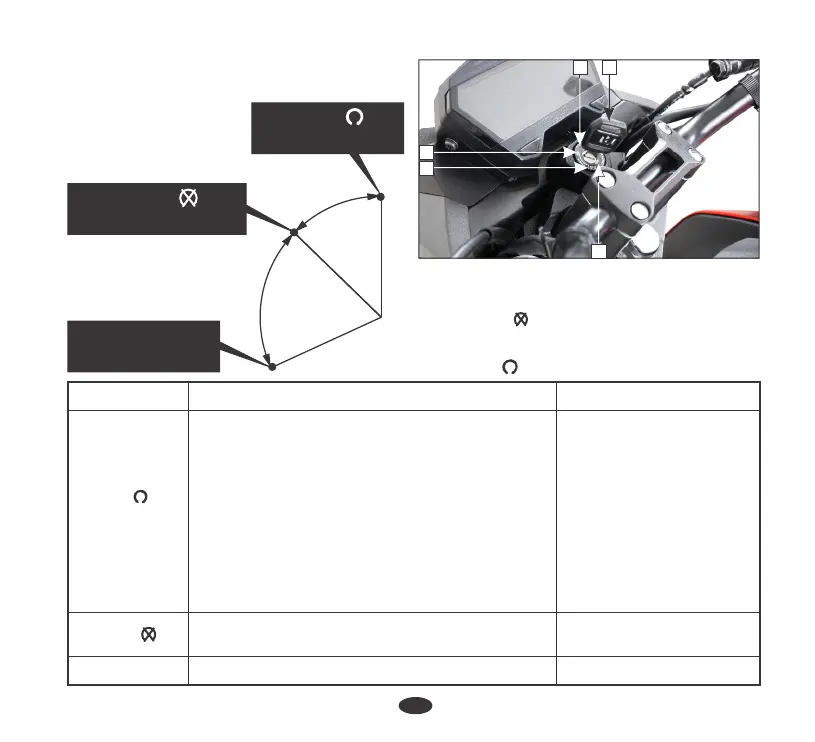

Key position Function
Key removal
Ignition switch
PARTS FUNCTION
1
3
4
5 2
