Other checks
•
Check the clutch cable for kinks or signs of
wear that could cause sticking or failure.
•
Check for clutch cable model. Use genuine
clutch cables.
•
Check for clutch cable routing.
If proper adjustment cannot be obtained or the
clutch does not work correctly, visit your
Authorised workshop.Hero MotoCorp
NOTE
• Start the engine, press the clutch lever and
shift into gear. Make sure the engine does
not stall, and the vehicle does not creep.
Gradually release the clutch lever and open
the throttle. The vehicle should start
smoothly and accelerate.
B
A

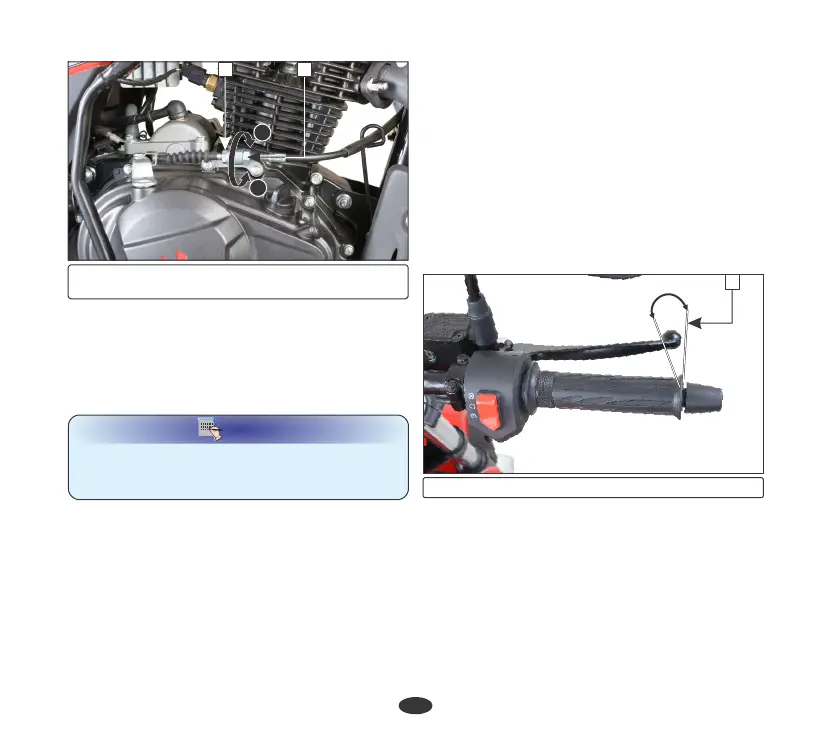

(3) Lock nut (4) Clutch cable adjusting nut
(A) Decrease free play (B) Increase free play
3
4
Cable inspection
THROTTLE OPERATION
Check for smooth rotation of the throttle grip
from the fully open to the fully closed position.
Check at full left and full right steering
positions. Inspect the condition of the throttle
cable from the throttle grip down to the
throttle body. If the cable is kinked, chafed or
improperly routed, it should be replaced or
rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
Free play adjustment
To adjust the free play, slide the boot (2), then
loosen the lock nut (3). Turn the adjuster (4)
to adjust free play. After adjustment, tighten
the lock nut and slide the boot on the adjuster
and locknut securely.
(1) Free play 2-6 mm
1
