WHEEL
Refer to the safety precautions on (page 32).
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
•

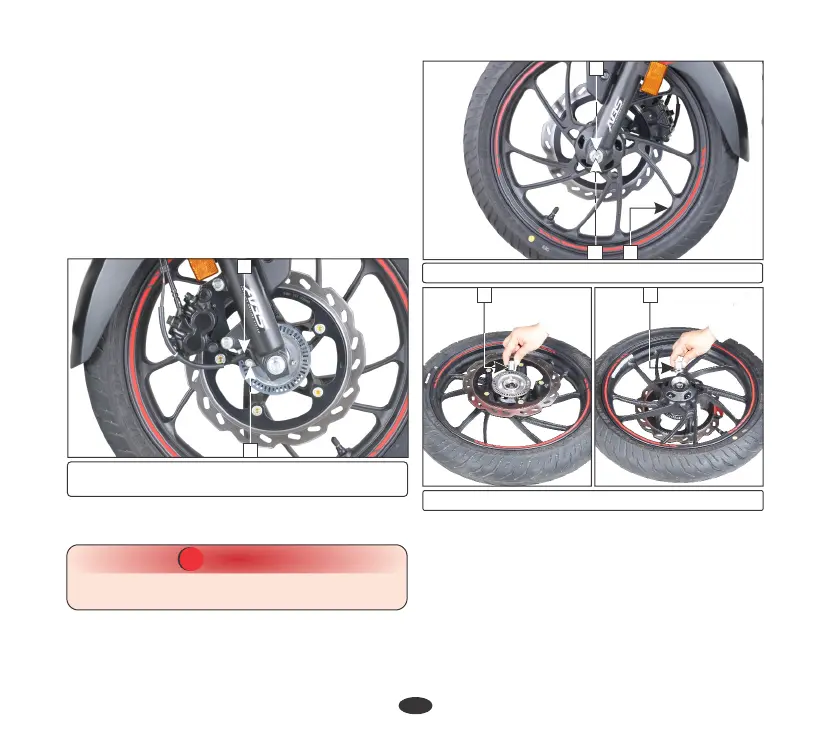

Remove the wheel speed sensor bolt (1)
from right fork leg and disconnect the wheel
speed sensor cable (2).
(a) Front wheel
Removal
(1) Wheel speed sensor bolt
(2) Wheel speed sensor cable
2
•
Remove the front axle nut (3), remove the
axle (4) and wheel (5).
CAUTION
!!
Do not operate front brake lever when the
wheel is removed.
(3) Axle nut (4) Axle (5) Wheel
4
3
5
•
Remove the side collars (6) from both sides
from the wheel.
(6) Side collars
•
Install the side collars (1) to both sides of
the wheel hub.
•
Insert the disc (2) between the pads in the
caliper assembly (3). When installing the
wheel, carefully fit the brake disc between
the brake pads to avoid damage to the pads.
•
Tighten the front axle nut (4) to the
specified torque.
Installation
TORQUE : 5.9 kgf-m
1
6 6
To Next Page
