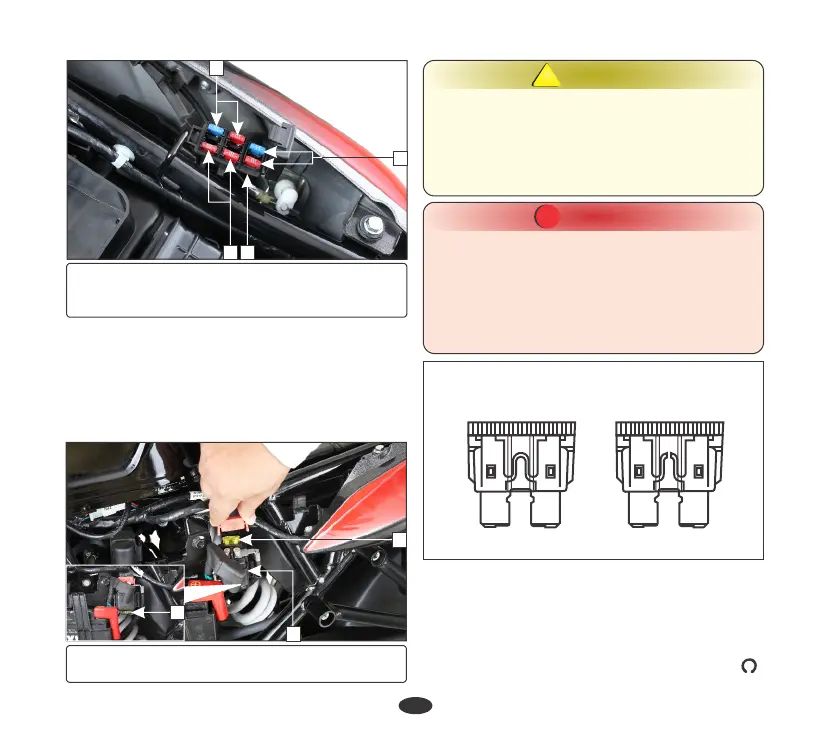

(B) Starter magnetic switch
(1) Main fuse (20A) (2) Spare fuse (20A)
61
Starter magnetic switch (B)
Location : Inside left side of fuel tank cover,
below the starter magnetic switch.
Fuse Type: Blade fuse
Main fuse (1) : (20A)
Spare fuse (2) : (20A)
WARNING
!!
•
Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
•
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
B
CAUTION
!!
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
(A) Fuse box
(1) Main fuse:15A, 10A, 10A & 10A
(2) Spare fuse:15A & 10A
2
1
1
A
1
2
The stop lamp switch (1) must be adjusted so
that stop lamp glows when rear brake is
applied. The procedure for adjusting stop
lamp is as follows :
•
Turn the ignition switch to the “ON” ( )
position.
STOP LAMP SWITCH
