42

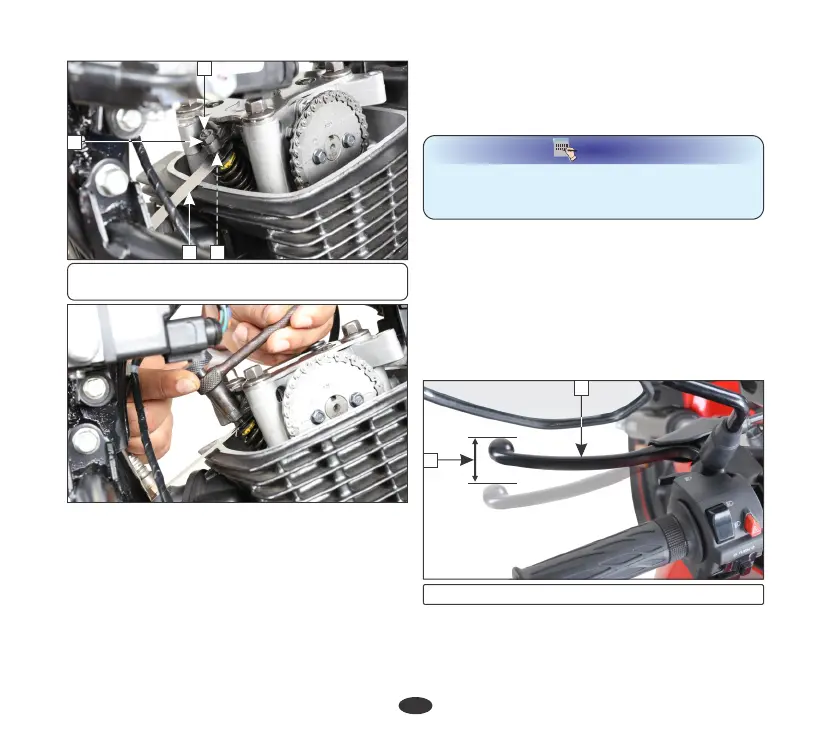

(5) Feeler gauge (6) Adjusting screw
(7) Valve stem (8) Lock nut
Intake: 0.12 mm
Exhaust: 0.13 mm
• If adjustment is required, adjust by loosening
the lock nut (8) and turning the adjusting
screw until there is a slight drag on the feeler
gauge.
Standard clearance (cold condition)
7
5
6
8
Normal clutch lever free play (1) is 10-20
mm at the lever (2).
CLUTCH LEVER FREE PLAY
Adjustment
Clutch adjustment may be required if the
vehicle stalls when shifting into gear or tends
to creep or if the clutch slips, causing
acceleration to lag behind engine speed.
•
After tightening the lock nut, check the
clearance again.
•
Installation is in the reverse order of
removal.
Before inserting the feeler gauge, smear a bit
of engine oil on the feeler gauge to avoid
damage to the feeler gauge.
NOTE
(1) Free play: 10-20 mm (2) Clutch lever
1
• To adjust the free play, loosen the lock nut
(3). Turn the adjusting nut (4) to obtain the
specified free play. Tighten the lock nut and
check the adjustment.
2
