HERO XTREME 160R PROGRAMMED FI - BATTERY - REMOVAL & INSTALLATION; FUSE REPLACEMENT

60
(8) Battery
•
Pullout the battery (8) from the battery box.
Battery installation
Refer to the safety precautions on (page 32).
Ÿ Reinstall in the reverse order of removal. Be
sure to connect the (+)ve terminal first, then
the (-)ve terminal.
FUSE REPLACEMENT
The fuse box (A) is below the seat.
Ÿ Check all fasteners are secure.
Spare fuse (2) : 15A & 10A
Main fuse (1) : 15A, 10A, 10A & 10A

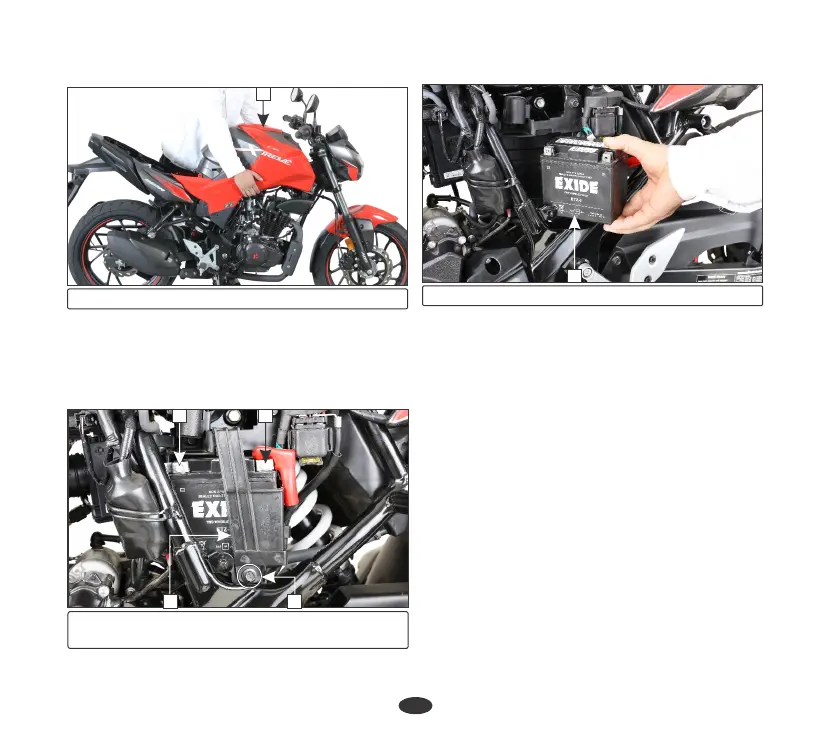

(4) (-)ve terminal (5) (+)ve terminal
(6) Battery clamp bolt (7) Battery clamp
4
5
8
•
Disconnect the (-)ve terminal lead (4) from
the battery first, then disconnect the (+)ve
terminal lead (5).
•
Remove the battery clamp bolt (6) and
battery clamp (7).
•
Remove the fuel tank cover (3).
(3) Fuel tank cover
3
7 6
