53
•
After installing the wheel apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.

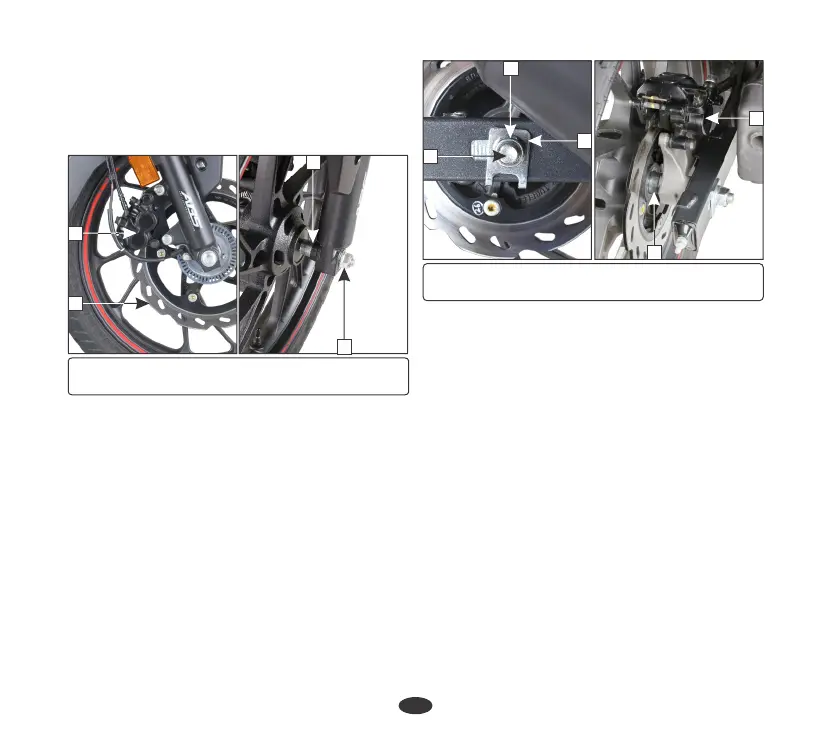

(4) Front axle nut
(1) Side collar (2) Disc (3) Caliper
2
4
3
•
Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
•
Remove the rear axle nut (1) and indicator
plate (2).
•
Remove the axle (3) and the right side
collar (4).
•
Remove the wheel.
Refer safety precautions on (page 32).
•
Move the caliper assembly (5) upwards.
(b) Rear wheel (Disc type)
Removal
Installation
•
Install the side collar (1) to the right side of
the wheel hub.
•
Tilt the vehicle and position the rear wheel
between the swingarm.
•
Align the rear caliper holder (3) with the
swingarm (4).
•
Insert the axle (5) from the left side through
the swingarm, wheel hub, collar and rear
caliper holder.
•
Insert the disc (2) between the pads in the
caliper assembly. When installing the wheel,
carefully fit the brake disc between the brake
pads to avoid damage to the pads.
4
(1) Rear axle nut (2) Indicator plate (3) Axle
(4) Side collar (5) Caliper assembly
1
2
3
1
5
