HERO XTREME 160R PROGRAMMED FI - WHEEL - REAR WHEEL (DRUM TYPE) REMOVAL

54

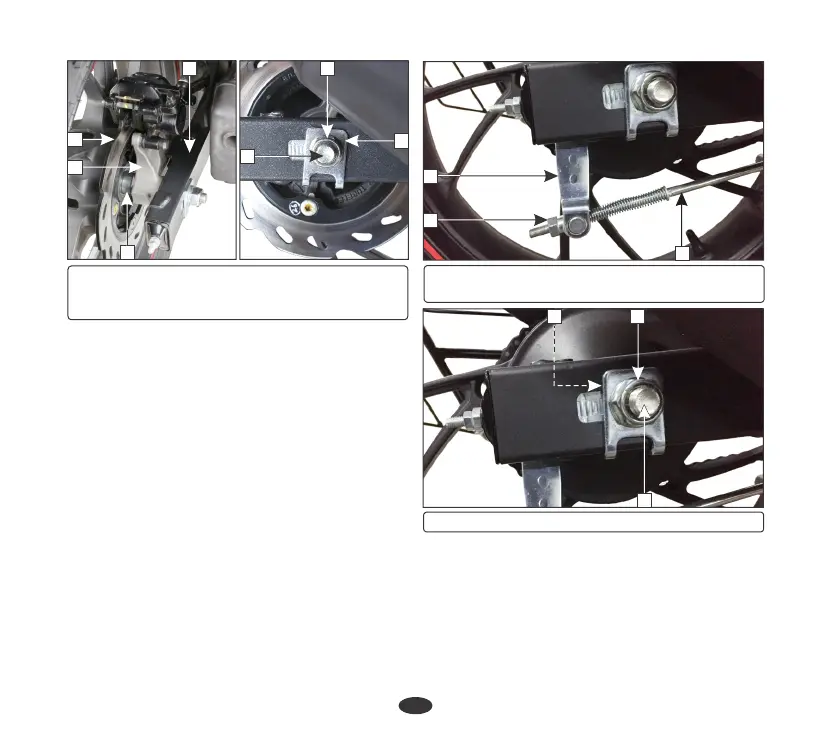

(1) Side collar (2) Disc (3) Caliper holder
(4) Swingarm (5) Rear axle
(6) Indicator plate (7) Rear axle nut
•
Adjust the drive chain slack (page 44).
(c) Rear wheel (Drum type)
•
Remove the rear axle nut (4).
•
Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
TORQUE : 6.8 kgf-m
•
Install the indicator plate (6) and tighten the
rear axle nut (7) to the specified torque.
•
Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal.
•
Pull out the axle (5) and collar (6).
•
Remove the wheel.
1
7
6
5
3
2
4
2
(1) Rear brake adjusting nut
(2) Rear brake rod (3) Brake arm
(4) Axle nut (5) Axle (6) Collar
4
5
Installation
Axle nut torque: 6.8 kgf-m.
•
Adjust the rear brake free play (page 50)
and drive chain slackness (page 44).
•
Reverse the removal procedure
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
3
1
6
