There is a clutch switch (6) provided for the
safety of the rider. The vehicle cannot be
started by electric starter switch until the clutch
lever is operated when the vehicle is engaged
in gear.
6. Clutch switch
(a) Electric starter operation ( )
Press the electric starter ( ) (1) of integrated
start-kill switch (2) downwards to start the
vehicle. Ensure the electric starter operation is
done when the vehicle transmission is in
neutral. If the vehicle is engaged in gear, press
the clutch lever before electric starter ( )
operation. Release switch after the engine has
started.

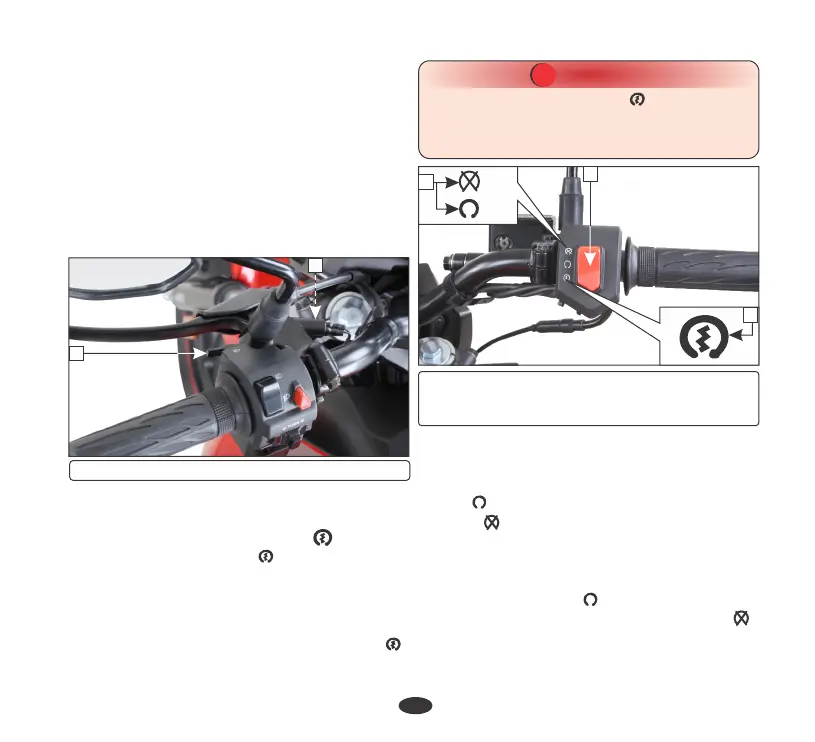

Right handlebar controls
1. Integrated start-kill switch
(1) Electric starter
(2) Integrated start-kill switch
(3) Engine stop (ON/OFF)
2
(5) Passing switch (6) Clutch switch
6
For engine stop operation (3) integrated
start-kill switch (1) has two positions. In
“ON” ( ) position, engine will operate and in
“OFF” ( ) position, engine will not operate.
The prime function of it is to stop the engine
during emergency (Vehicle tip over, throttle
cable stuck etc.). The switch should normally
remain in “ON” ( ) position. During
emergency, put the switch to “OFF” ( )
position.
(b) Engine stop switch operation
5
Gives an indication for passing ahead.
5. Passing switch
Press passing lamp switch (5) to operate the
passing lamp.
CAUTION
!!
Never hold electric starter ( ) of integrated
start-kill switch continuously more than 5
seconds as continuous cranking of engine will
discharge the battery.
