USB Device 1-4
V-Switch quad II supports and switches transparent USB 2.0 devices such as printer, camera, 3D mouse,
finger printer, and external memory. Connect a single finger printer to log in on all four computers connected
to V-Switch quad II; or connect a memory stick to copy data from one computer to the stick, and from the stick
to another computer connected to V-Switch quad II: Data can be copied between computers without beeing
networked.

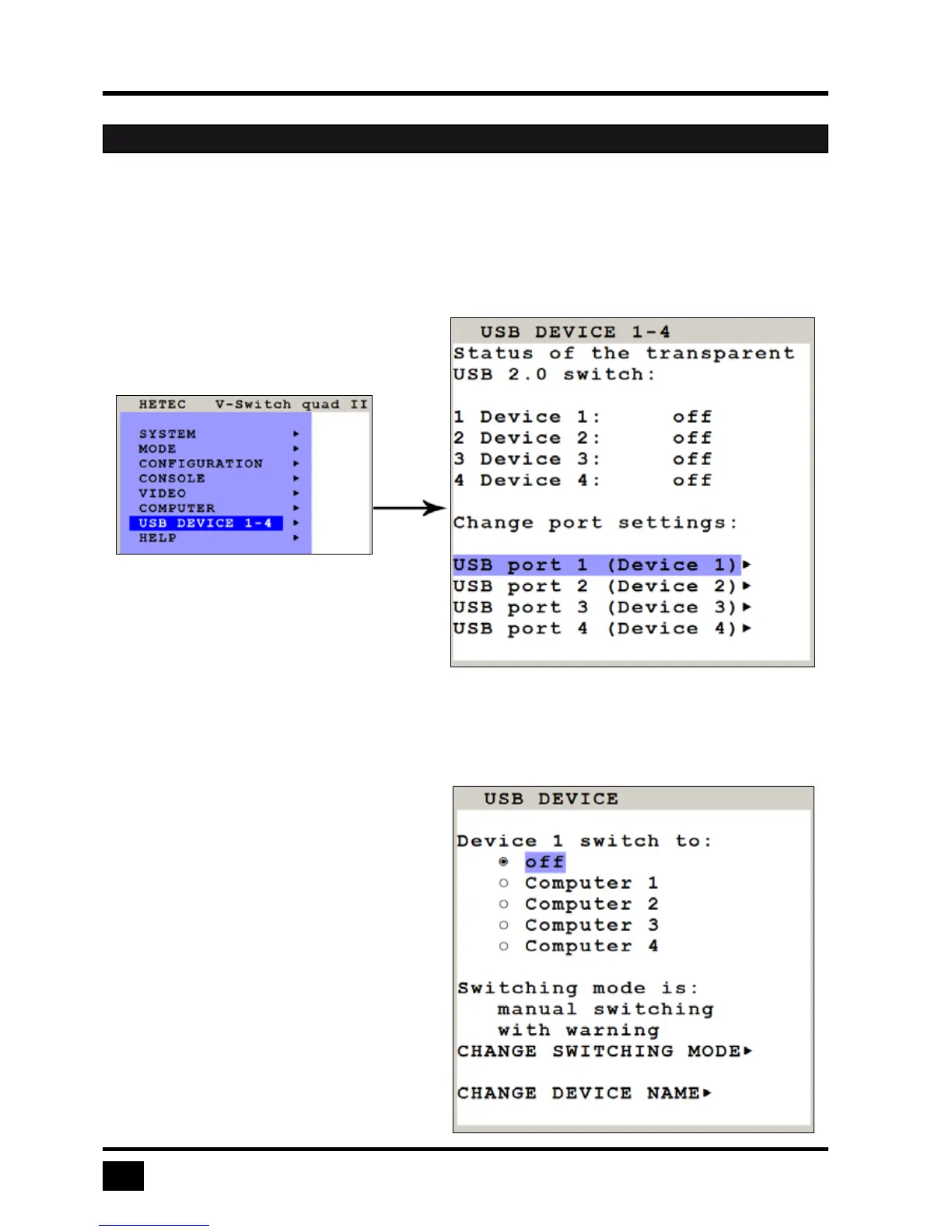

Use arrow keys to navigate in the OSD menu
to the entry USB DEVICE 1-4 and press
ENTER/SELECT to open the window.
This window shows the status of
the transparent USB 2.0 switch:
Which USB device/port is switched to
which computer (1 to 4) connected to
V-Switch quad II or switched off.
OFF: Port is not switched to a computer. A USB device may be connected, but it is not switched to a computer.
Computer (1-4): Port is switched to one of the computers.
This window also allows changing port and switching settings.
Use arrow keys to select one of the four USB ports and open its submenu by pressing ENTER/SELECT.
This window allows changing the following settings
dedicated to this USB port: Manual switching,
change switching mode, change USB device name.
Device 1 switch to:
By default, it is switched „off”: This USB port is not
switched to any of the four computers.
To manually switch this USB port to one of the four
computers or „off”, use arrow keys to navigate in
the „Device 1 switch to” menu and press
ENTER/SELECT.
OSD - USB DEVICE 1-4
