29
● SENSITIVITY – Set the sensitivity of motion detection.
Sensitivity degree : 0 < 1 < 2 < ….. < 9
● ALARM-OUT – Set the alarm-out when motion is detected.

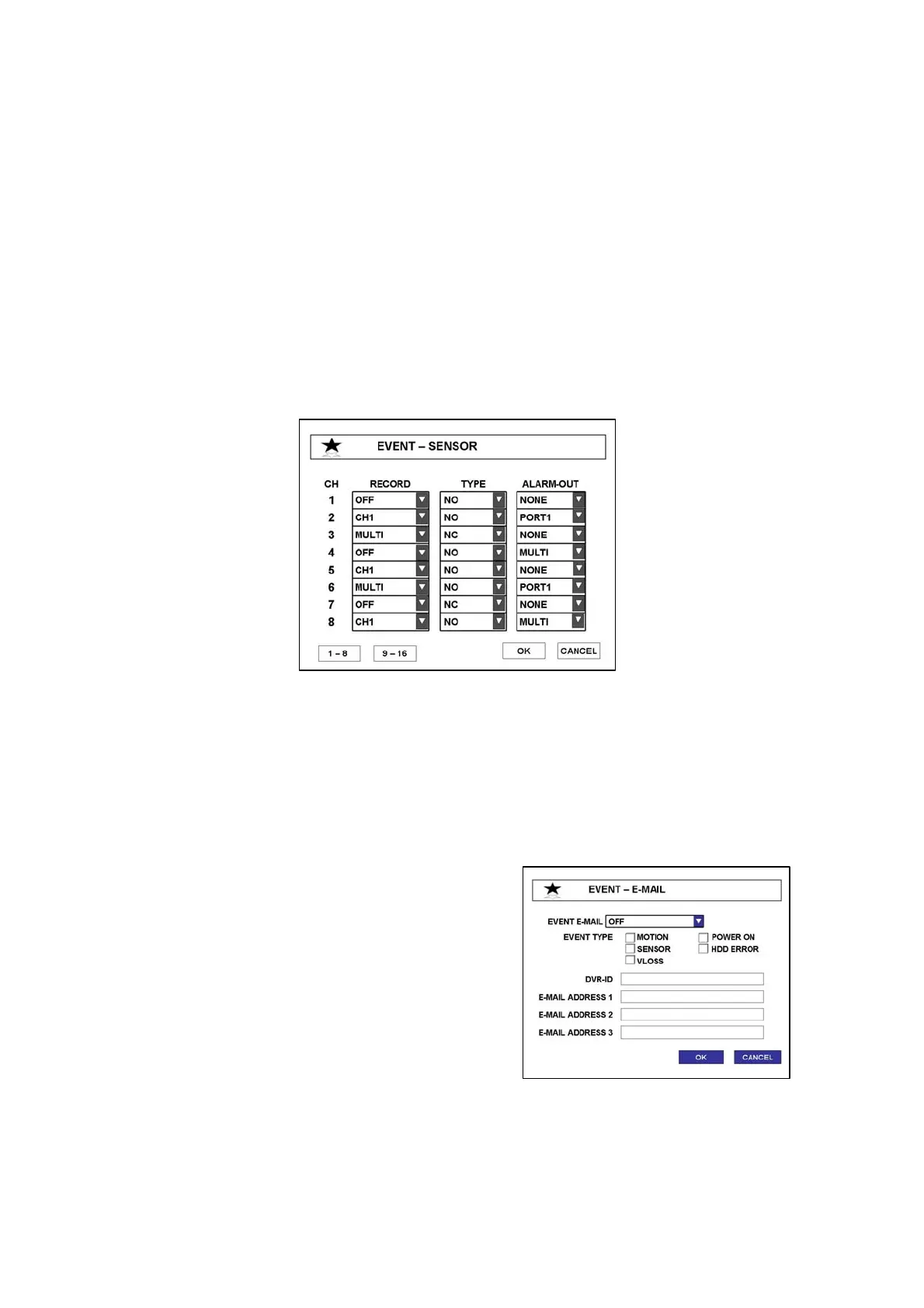

3.4.2 SENSOR
● RECORD – DVR System starts recording when a signal is detected from sensor.
● TYPE – Select sensor type between NO and NC.
● ALARM-OUT – Set the alarm-out when motion occurs.
3.4.3 E-MAIL
When below events happen, system will notify by E-mail. You can register three email
addresses.
z MOTION
z POWER ON
z SENSOR
z HDD ERROR
z VLOSS
PS. Yahoo & Gmail accounts are suggested.
Note : 4 alarm-outs are supported. Select an alarm-out that you want to synchronize with the
current motion channel. Multi-selection is possible.
