Components
TIP:

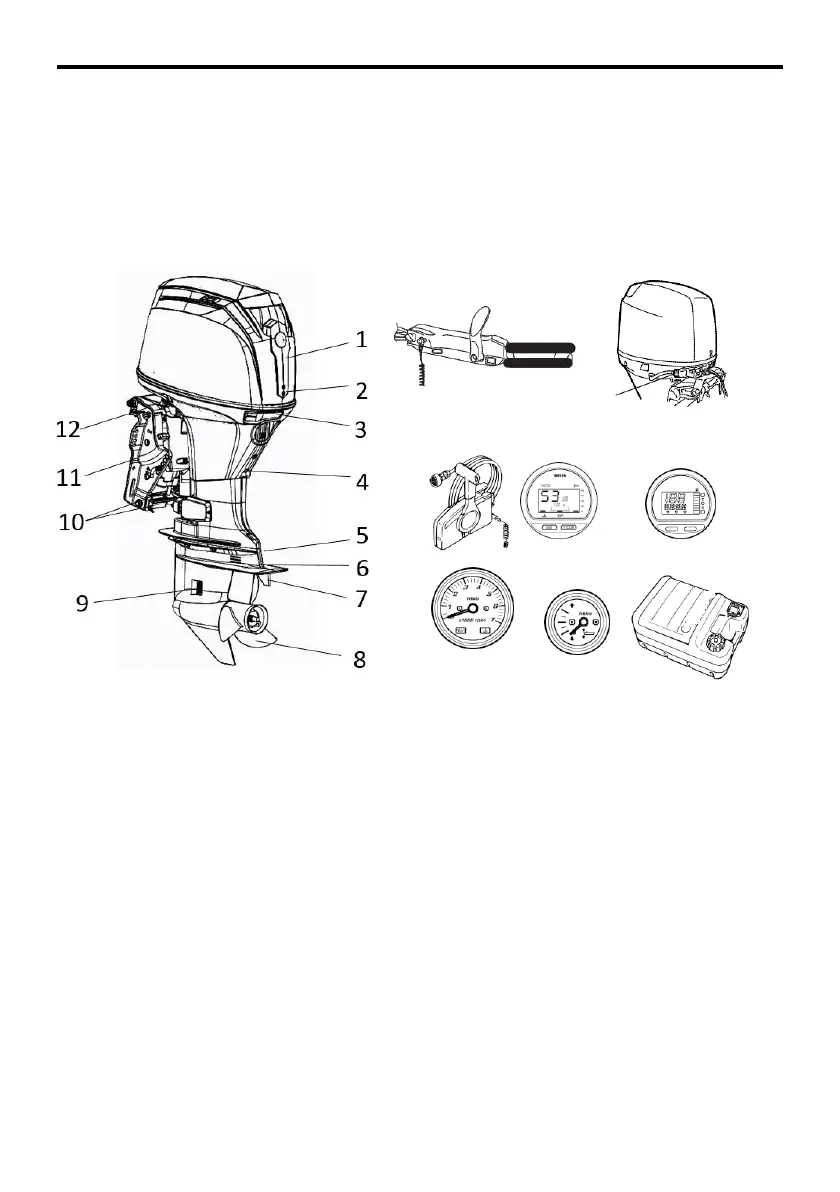

Components diagram
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
F40, F60
14
15
18
16 17
19 20
HID EA
SPEED
Km /h kn ot m ph
km mi l e
TRIP T IME BAT T
set mode
1. Top cowling
2. Water separator
3. Cowling lock lever
4. Drain screw
5. Anode*
6. Anti-cavitation plate
7. Trim tab (anode)
8. Propeller*
9. Cooling water inlet
10. Anode(s)
11. Clamp bracket
12. Tilt support lever
13. Tiller handle*
14. Flushing device
15. Remote control box (side mount type)*
16. Digital tachometer*
17. Digital speedometer*
18. Tachometer*
19. Trim meter*
20. Fuel tank*
