1
1. Fuse
puller

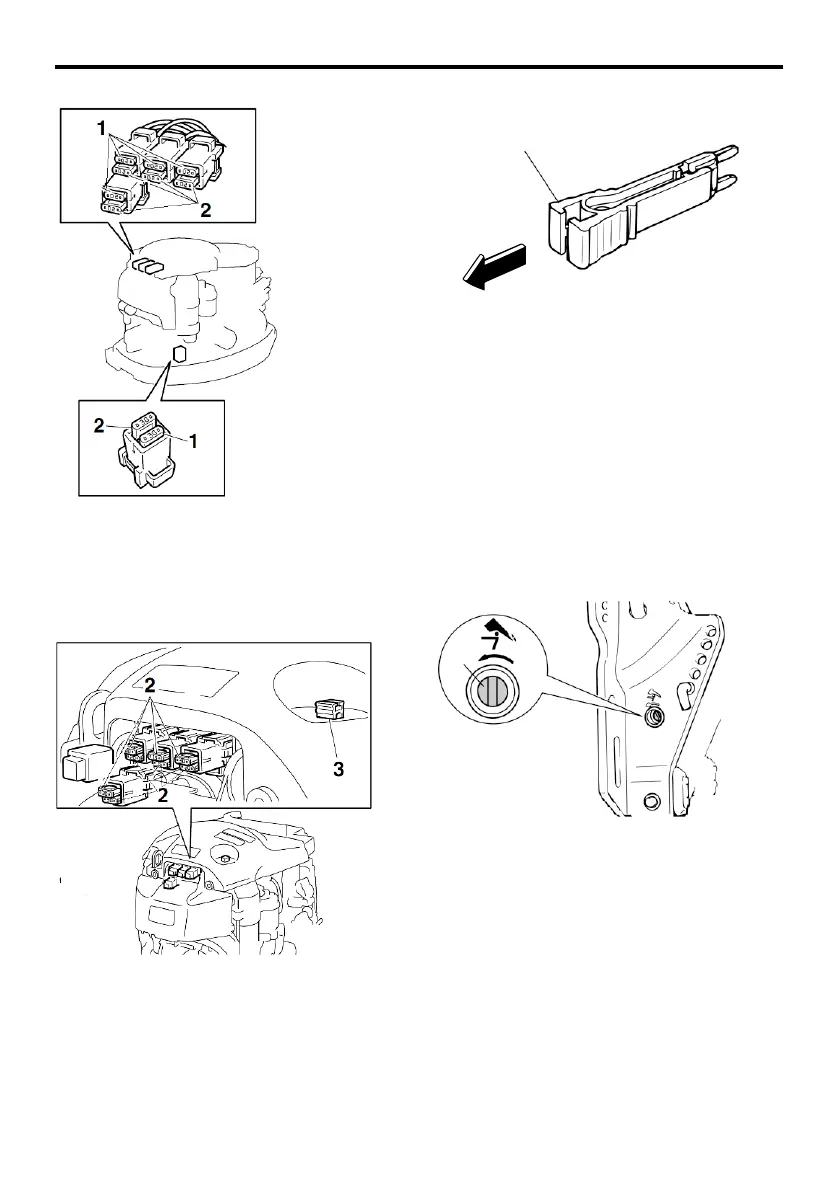

1. Fuse (20 A 3, 30 A)
2. Spare fuse (20 A 3, 30 A)
3. Fuse puller
Power trim and tilt will not operate
If the engine cannot be tilted up or down with
the power trim and tilt because of a dis-
charged battery or a failure with the power
trim and tilt unit, the engine can be tilted
manually.
1. Loosen the manual valve screw by turn-
ing it counterclockwise until it stops.
1
1. Manual valve screw
2. Put the engine in the desired position, then
tighten the manual valve screw by turning it
clockwise.
1. Fuse (15A, 20 A, 30 A)
2. Spare fuse (15A, 20 A, 30 A)
3. Fuse puller
