Instruments and indicators
NOTICE
●
Do not continue to run the engine if the
low oil pressure-alert indicator is on and
the engine oil level is lower. Serious
engine damage will occur.
●
The low oil pressure-alert indicator
does not indicate the engine oil level.
Use the oil dipstick to check the re-
maining oil quantity. For further informa-
tion, see page 49.

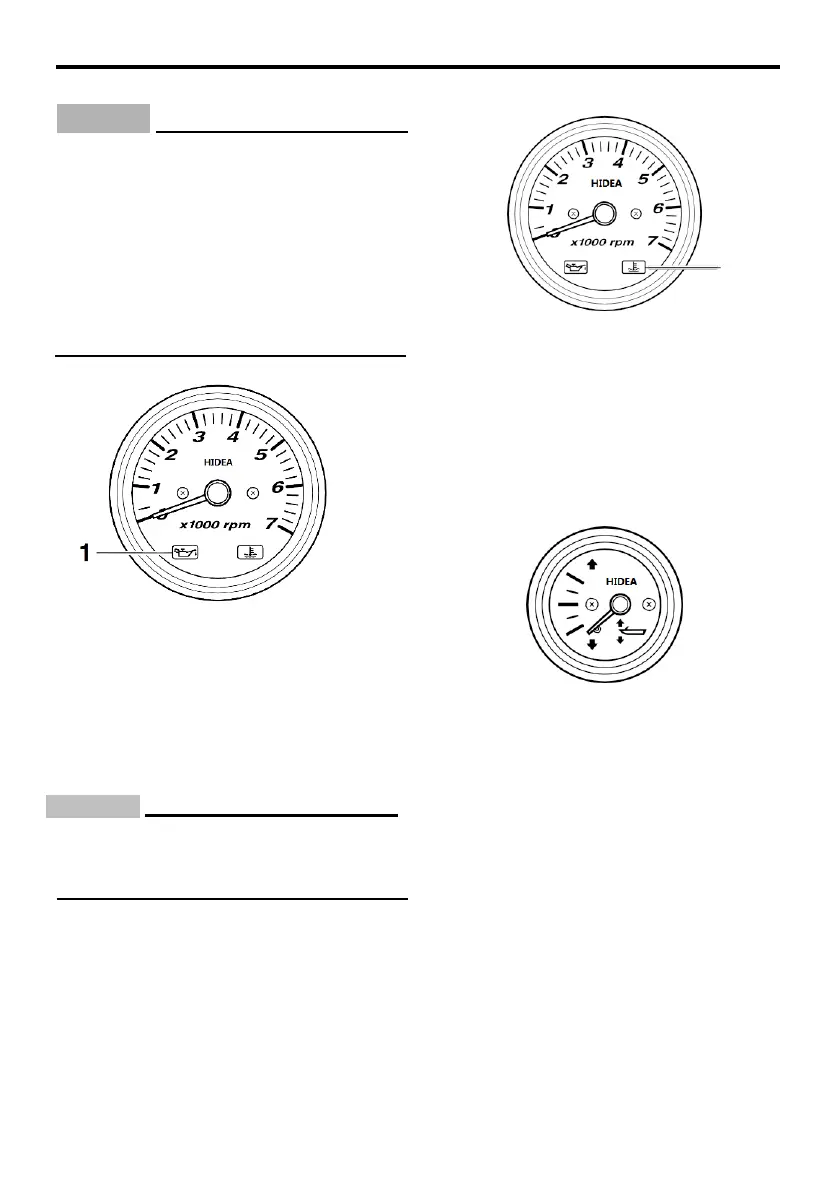

1. Overheat-alert indicator
1
Analog trim meter
1. Low oil pressure-alert indicator
This gauge shows the trim angle of your out-
board motor.
Overheat-alert indicator
If the engine temperature rises too high, this
indicator will flash. For further information on
reading the indicator, see page 43.
NOTICE
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
Memorize the trim angles that work best for
your boat under different conditions. Adjust
the trim angle to the desired setting with the
power trim and tilt switch.
Command link multifunction
meters
Command link multifunction meters have 6
kinds of meter units; tachometer unit (square
or round types), speedometer unit (square
type), speed & fuel meter unit (square or
round types), and fuel management meter
(square type). The indicator system is slight-
ly different between the round and square
types. Check the model and type of your unit
