trol lever in the neutral position and lift the
neutral throttle lever.
1. Fully open
2. Fully closed
TIP:
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the closed
position.
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.

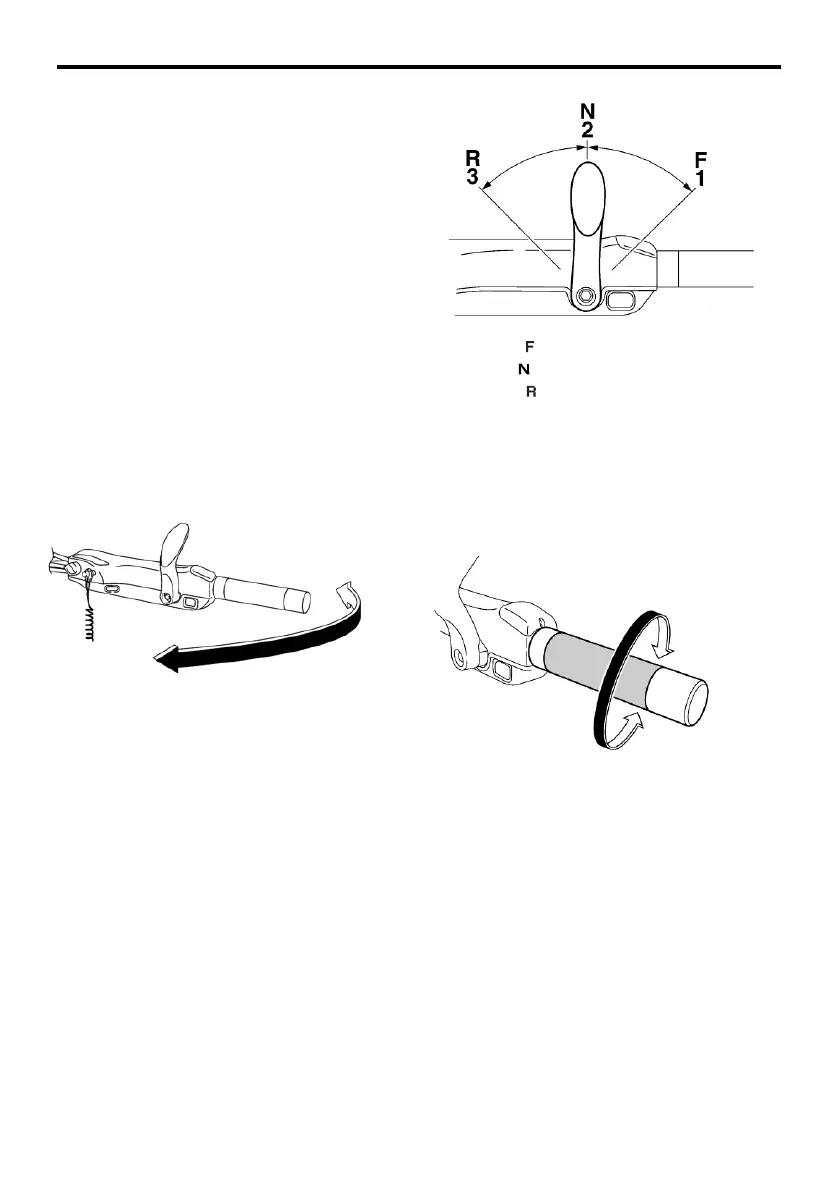

Gear shift lever
Move the gear shift lever forward to engage
the forward gear or rearward to engage the
reverse gear.
1. Forward “ ”
2. Neutral “ ”
3. Reverse “ ”
Throttle grip
The throttle grip is on the tiller handle. Turn
the grip counterclockwise to increase speed
and clockwise to decrease speed.
Throttle indicator
The fuel consumption curve on the throttle
indicator shows the relative amount of fuel
consumed for each throttle position. Choose
the setting that offers the best performance
and fuel economy for the desired operation.
