Chapter 4. Digital Loader Operation
4-10
4.5.2 Auto jog mode (P6-02): Motor can independently operate without upper controller
Motor can run without the need of connecting the contact input connector CN1 in Auto jog mode
just like in Jog mode. However, unlike the Jog mode in which the Left and Right keys must be
continuously pressed to run the motor, the motor runs continuously for a given period of time and
at given speed if the value of [Auto Jog Set(tS-17)] is set to 1.
(See 6.6.2 Auto Jog)
To reset the auto jog function and return to normal servo function while the motor is running after
setting [Auto Jog Set(tS-17)] to 1 for auto jog operation, do one of the following: Exit to the auto
jog mode from the sub-menu of the auto jog mode; set [Auto Jog Set(tS-17)] to 0; or turn ON main
power after turning it OFF.

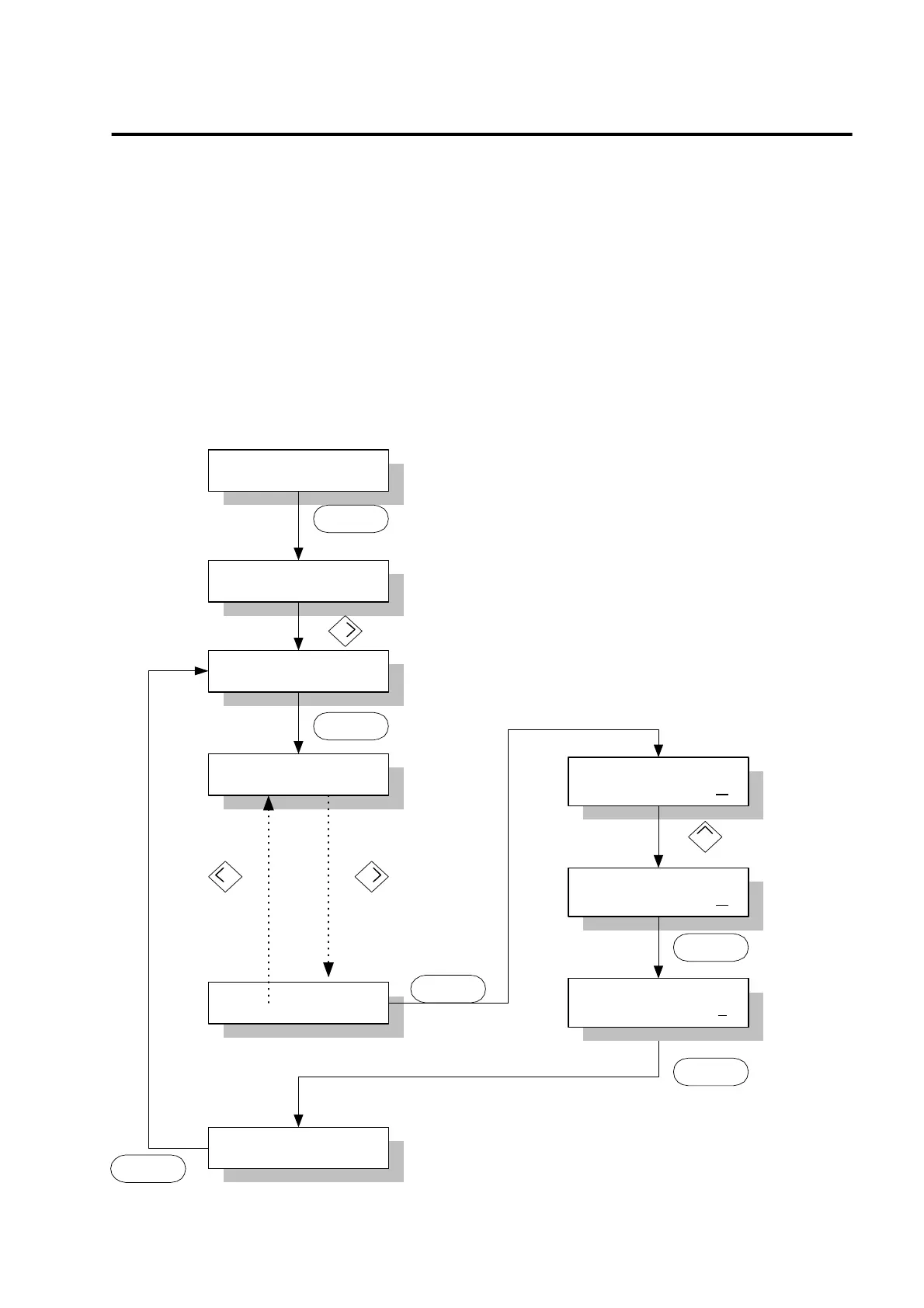

Test Mode
P6--
Jog Mode
P6-01
Auto Jog Mode
P6-02
Auto Jog Speed1
tS-11 +0100.0
ENTER
ENTER
PROG
Auto Jog Set
tS-17 0
PROG
ENTER
PROG
Auto Jog Set
tS-17 0
Auto Jog Set
tS-17 1
Auto Jog Set
OK? 1
Auto Jog Set
tS-17 1
Motor rus in auto jog mode
