Chapter 4. Digital Loader Operation
4-11

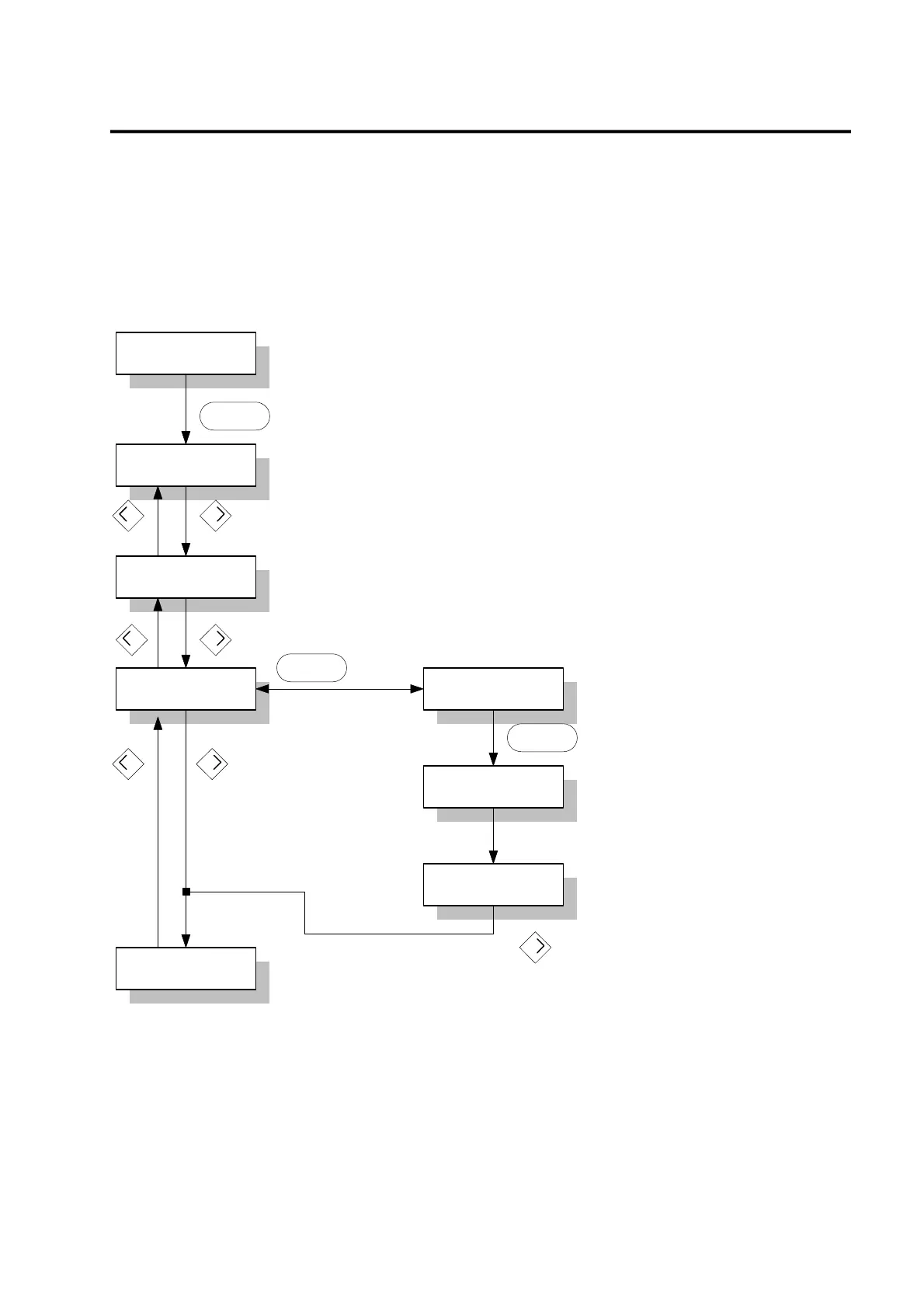

4.5.3 Simulation operation [Simulation mode (P603)]
While the motor is connected and is operated without contact input in Jog and Auto Jog modes,
simulated operation is a condition under which, while the connector CN1 is connected in normal
state, the menu displays data just as the motor is running when the motor wire and encoder are
separated.
Test Mode
P6--
Jog Mode
P6-01
PROG
Auto Jog Mode
P6-02
Jog Mode
P6-01
Simulation Mode
Simulation oFF
Simulation Mode
Simulation on
Simulation Mode
SEt Completed
PROG
ENTER
Simulation Mode
Simulation on
toggle
To cancel simulation mode, reset or turn OFF the main power.
