Chapter 5. Mount Loader Operation
5-6

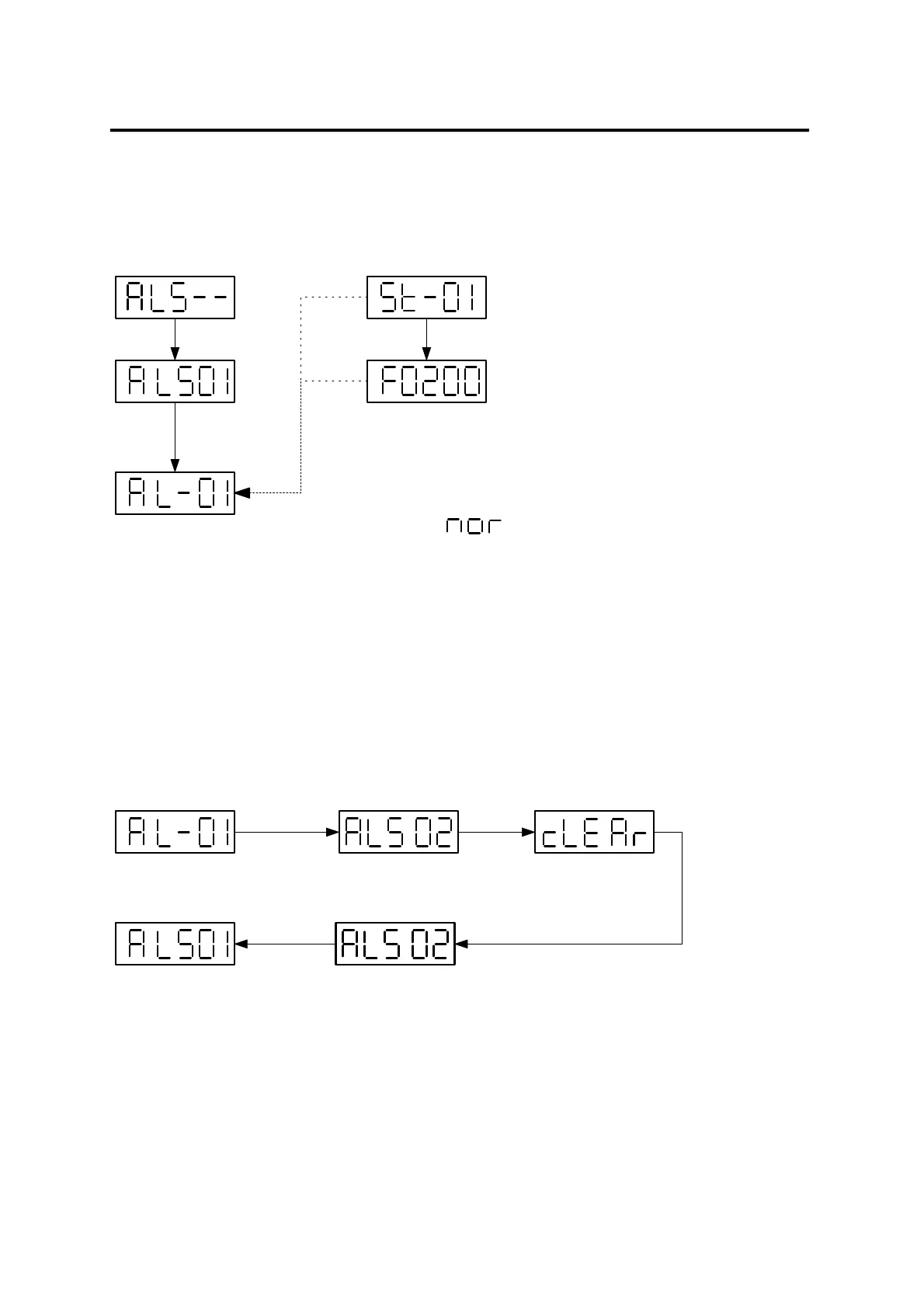

5.3.2 Alarm window
(1) Menu displaying current alarm status (ALS-01)
In case overcurrent alarm occurs
ENTERENTER
ENTER :
Moves to sub-menu
In case of No alalrm and nomal status
:
The alarm status display menu displays the current alarm.
In case of an alarm, it is displayed in the alarm display window of any menu.
Screen can freely move to another menu, but the motor cannot be run unless the alarm is reset.
(2) Current alarm reset menu
RIGHT ENTER
LEFT
Displays No alarm
and normal states
ENTER :
Reset current alarm
LEFT, RIGHT :
Moves between sub-menus
(In case of an
overcurrent alarm)
The current alarm reset (ALS-02) menu resets the alarm that has occurred on the system, a
function which is the same as that of the external input reset.
To Next Page
