Chapter 5. Mount Loader Operation
5
-7

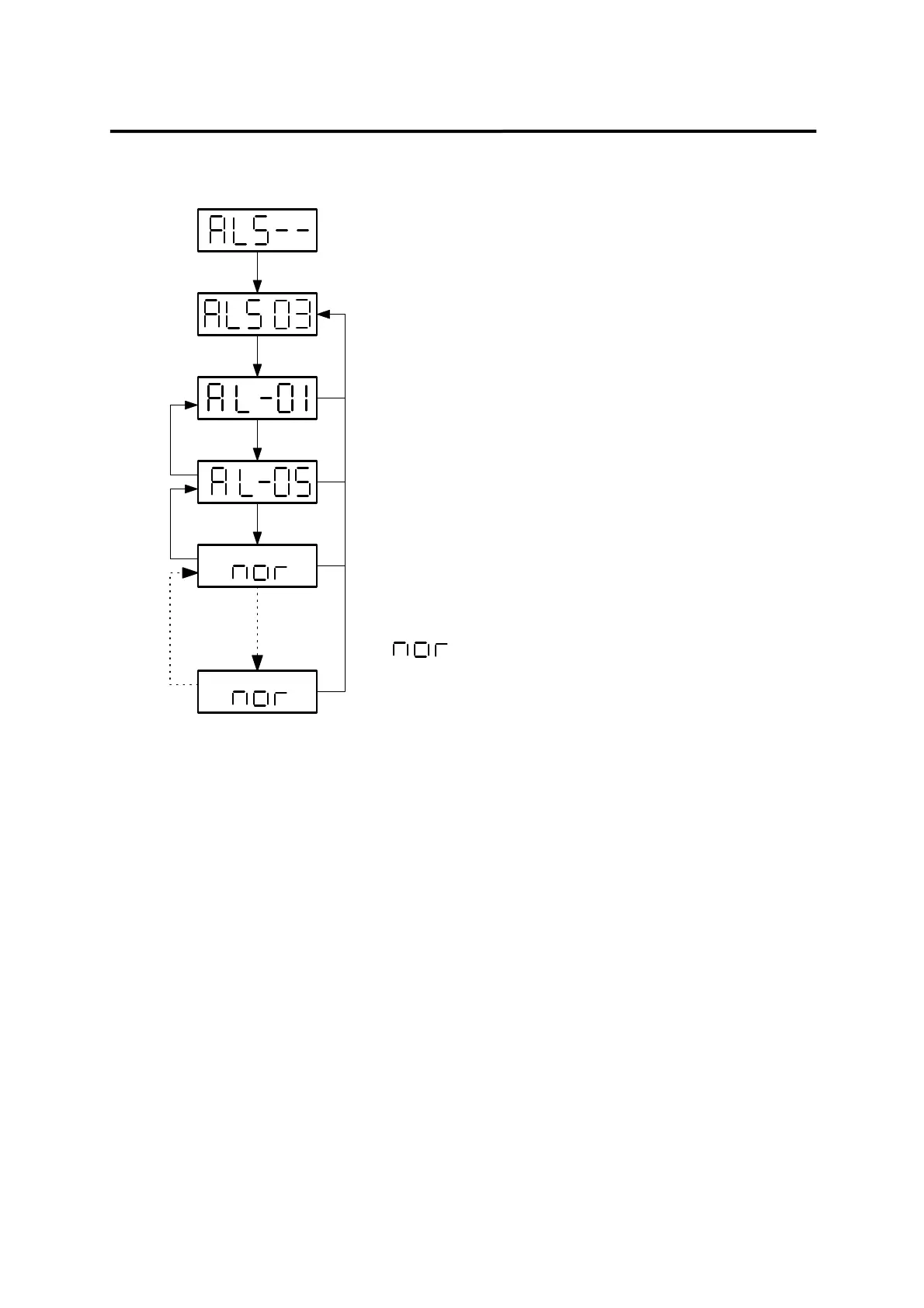

(3) Alarm history (ALS-03) display menu
LEFT
LEFT
LEFT
RIGHT
RIGHT
RIGHT
ENTER
ENTER
: Indicates No alalrm and normal status
Note) Assuming that overcurrent (AL-01) alarm occured
after the encoder miswiring (AL05) alarm had
occured during servo operation
ENTER, RIGHT
(Indicates alarm occured most recently)
The alarm history menu displays up to 10 alarms that have occurred most recently.
The above figure is based on the assumption that overcurrent (AL-01) alarm occurred after the
encoder miswiring (AL-095) alarm had occurred during servo operation.
"nor" is indicated when there is no alarm.
However, EMER STOP (AL-00) is not stored in the alarm history (ALS03).
To Next Page
