4-10 The x.Spot Menu System x.Spot™ User Manual
Six-Wheel Color Mixing Module Parameters
This module is the standard option for Slot 1 in x.Spot fixtures. It combines a static
color wheel with three color mixing wheels and two color correction wheels as
shown in Figure 4-3.
• The static color wheel contains 5 dichroic filter “wedges” plus open (white).
• The cyan, magenta, and yellow color mixing wheels have graduated color from
open (white) to full saturation.
• Color Temperature Orange (CTO) and Color Temperature Blue (CTB) wheels
provide variable color temperature correction and beam flatness control.

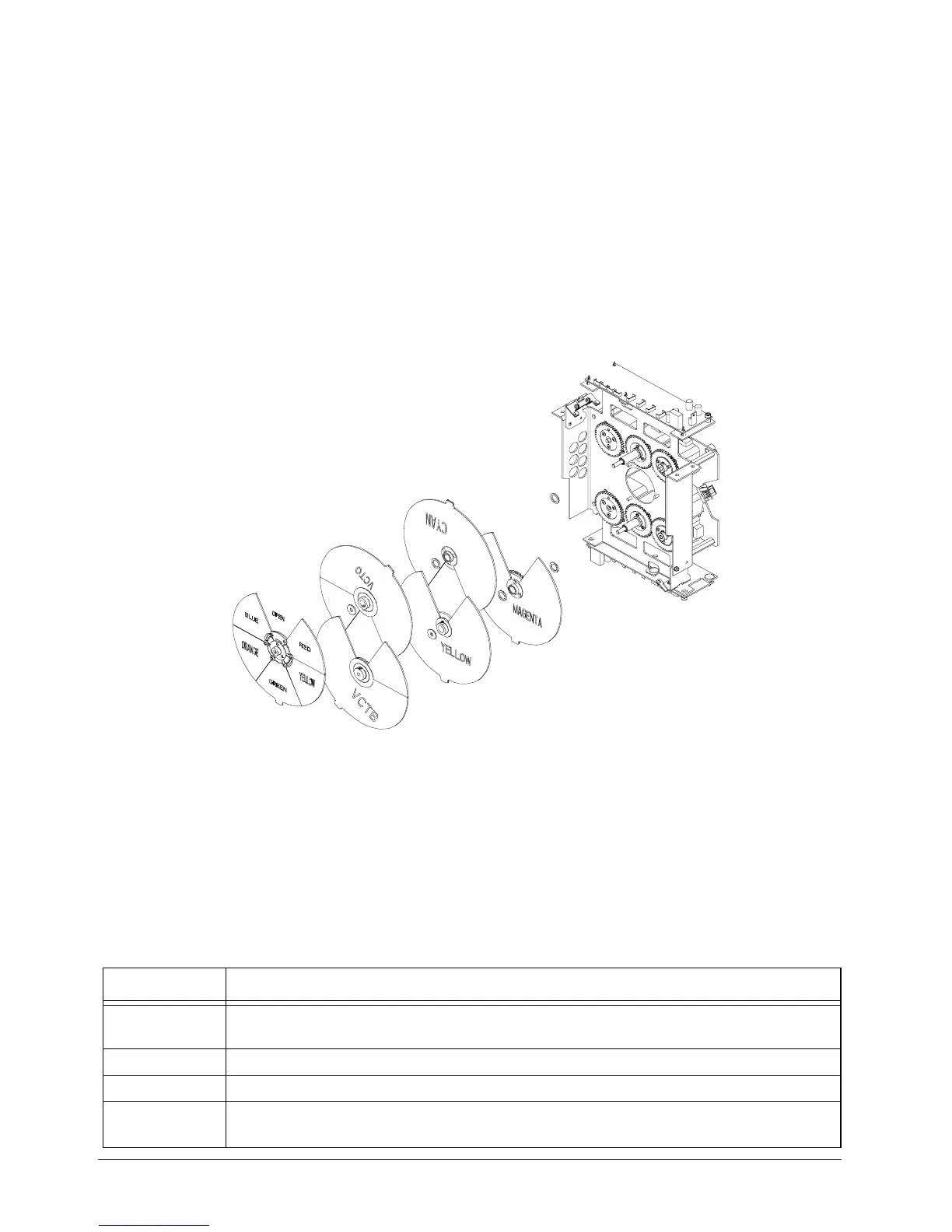

Figure 4-3 x.Spot color wheel assembly
Static Color Function
The Static Color function is controlled with DMX Channel 15. This parameter
determines how the fixed color wheel moves. The Static Color Function parameter
can be enabled in either full speed (controller crossfading the wheel positions), or
MSpeed (MSpeed control of the wheel motor). For more information on MSpeed, see
“MSpeed (Motor Speed)” on page 4-8. Table 4-5 describes the Static Color Functions
available on the x.Spot fixture.
Table 4-5 Static Color Function Descriptions
Color Function Description
Indexed
Allows the color wheel to take the quickest path and snap to the chosen whole or
half color.
Forward Spin Allows a forward color wheel spin at variable speeds.
Reverse Spin Allows a reverse color wheel spin at variable speeds.
Continuous
Allows positioning at any point on the color wheel (allows for a smaller “step”
between color wheel positions for color crossfades).
