Dual Rotating Gobos Module Parameters
The Dual Rotating Gobos module shown in Figure 4-5 is the standard x.Spot module
for Slot 2. Gobo 1 is an 8-position wheel containing seven standard lithopatterns plus
open. An additional bracket behind positions 3 and 7 of Gobo 1 holds static lithos for
creating various Moire and overlay effects at those positions.
The second wheel in this module is an 8-position Effects wheel containing seven
effects and open.
This module uses the same size lithos as High End Systems Studio Spot 575 fixture
and can be easily customized. See “Replacing x.Spot Lithopatterns® and Effects
Glass” on page 5-12.

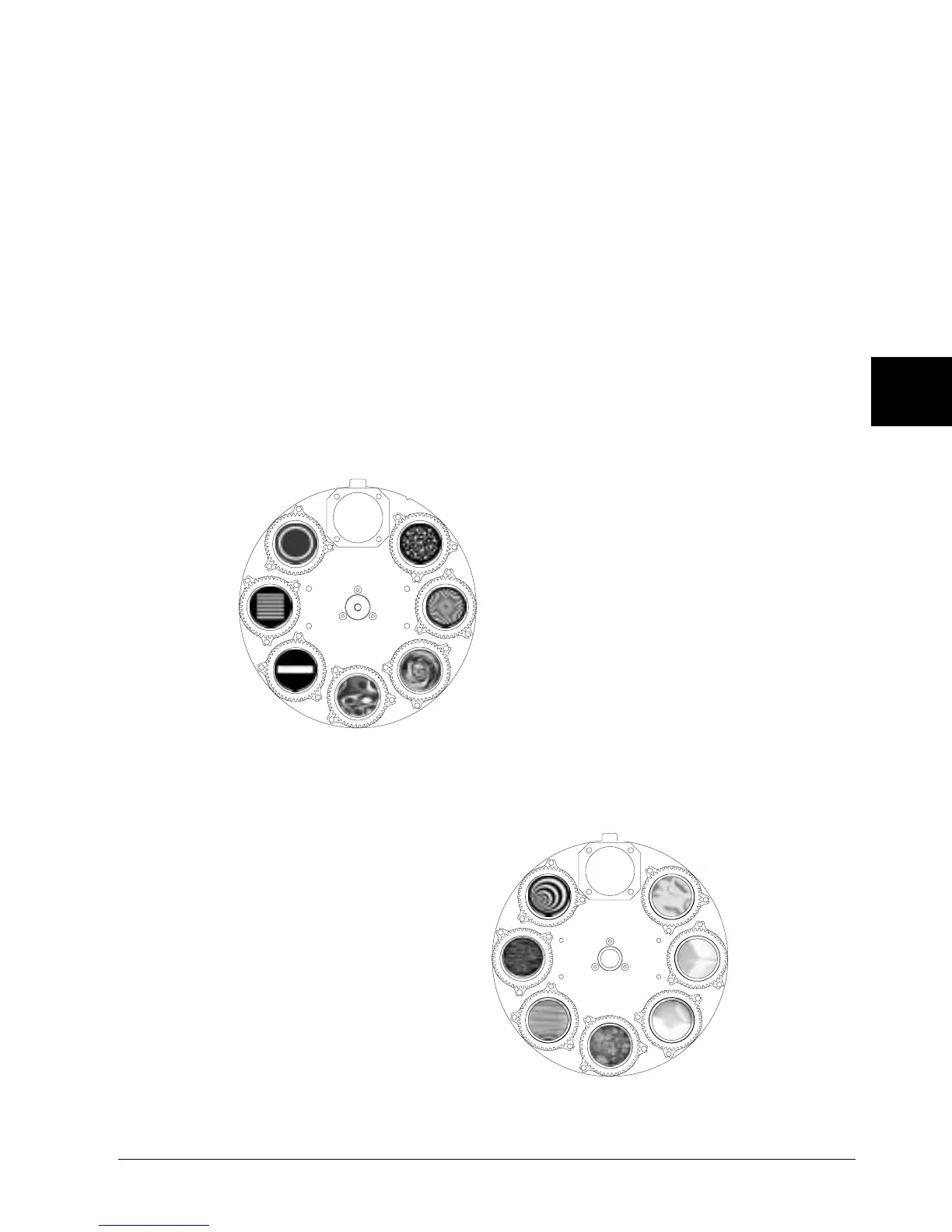

Figure 4-5 Wheels in the Dual Rotating Gobos module
Position 1
Open
Position 2
Xylem
Position 3
Fin Fan Left and Fin Fan Right
(one in static aperture to achieve Moire effect)
Position 4
Velvet Fold
Position 5
Lumoil, cyan/magenta
Position 6
Broadband
Position 7
Parquet
Position 8
Tunnel
Rotating Gobo 1
Position
1 Open
Position 2
Slow Glass
Position 3
3-Facet Prism
Position 4
5-Facet Prism
Position 5
Fusion Fire Blue
Position 6
Lenticular
Position 7
Ligneous
Position 8
PsychoTunnel
Rotating Effects
