High End Systems x.Spot - Rotating Gobo and Iris Module Parameters; Gobo 2 Function

4-16 The x.Spot Menu System x.Spot™ User Manual
Rotating Gobo and Iris Module Parameters
Rotating Gobo and Iris is the standard Slot 3 Module for the x.Spot fixture. It
contains one 8-position Gobo wheel with seven rotating lithopatterns (plus open) and
a variable iris, (see Figure 4-6).

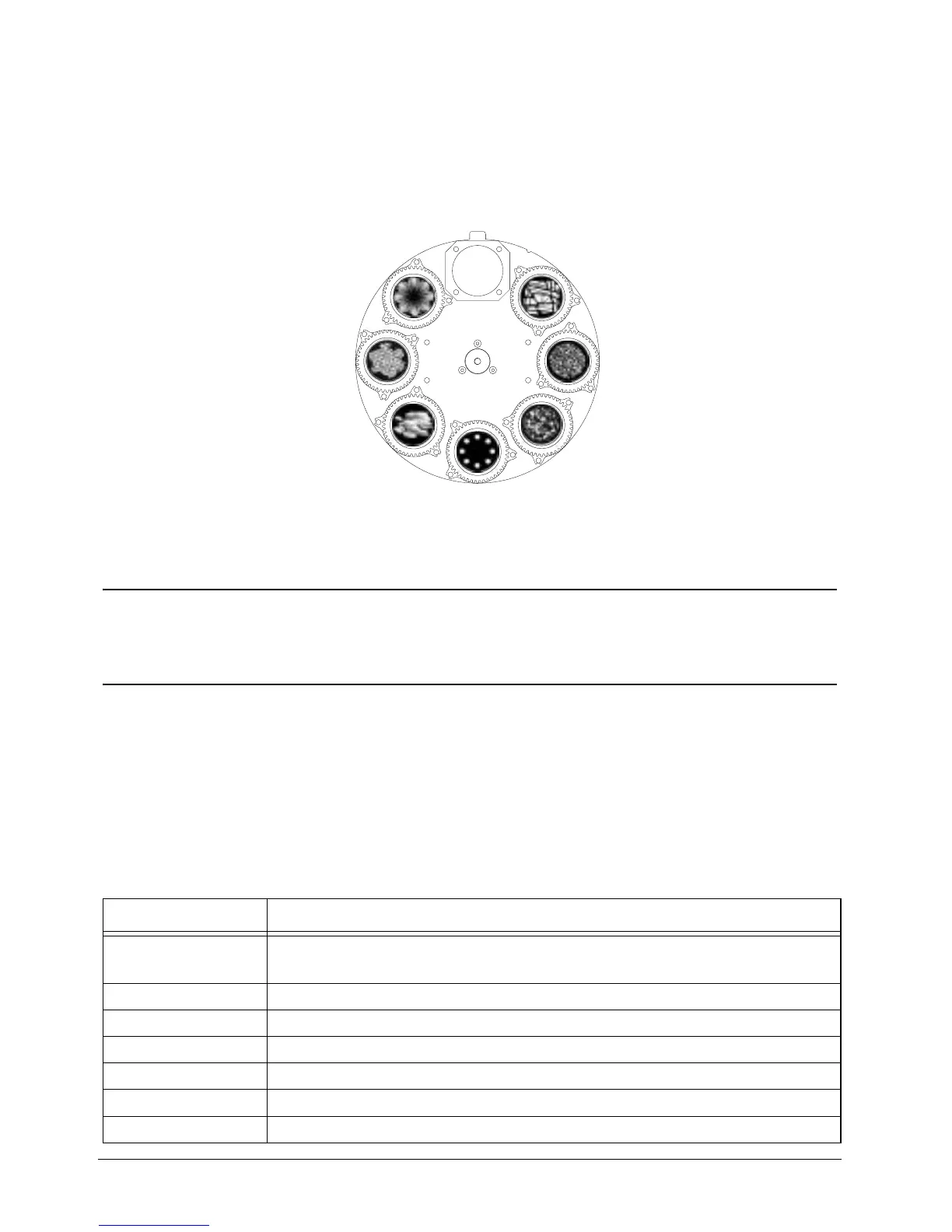

Figure 4-6 Rotating Gobo 2 Lithopatterns
In the following parameter descriptions, the term Spin indicates motion
of the large wheel and
Rotate refers to motion of the smaller aperture
wheels holding individual lithopatterns.
Gobo 2 Function
The Gobo 2 Function parameter is controlled with DMX Channel 33. This parameter
determines how the Gobo wheel moves. Table 4-10 describes the Gobo 2 Function
parameter. It can be enabled in either full speed (controller crossfading the wheel
positions), or MSpeed (MSpeed control of the wheel motor). For more information,
see “MSpeed (Motor Speed)” on page 4-8.
Table 4-10 Gobo 2 Function Descriptions
Gobo 2 Function Description
Indexed
Allows the gobo wheel to take the quickest path and snap to the chosen
effect.
Forward Wheel Spin Allows a forward gobo wheel spin at variable speeds.
Reverse Wheel Spin Allows a reverse gobo wheel spin at variable speeds.
Scan Oscillates the gobo wheel at a factory-determined range and speed.
Random Selects random effect positions at variable speeds.
Blink Wheel Closes and opens the shutter on wheel position changes.
Continuous Sets a crossfade as the wheel moves between chosen aperture positions.
Position 1
Open
Position 2
Fracture
Position 3
Polymeoba
Position 4
Dense Foliage
Position 5
Gatlin Gun
Position 6
Fluffy Clouds
Position 7
Irregular Craters
Position 8
Valiant
