Replacing Parts
Trackspot User Manual
4. Remove the fixture’s access door by sliding the thumb latch toward
the rear of the fixture and lifting the door off (see Figure 3-1).
The access door is connected to the fixture by a safety cable. You
can leave the door attached, or you can unclip the safety cables to
completely remove the door from the fixture.
5. Locate the reflector, lamp socket, and old QT 8500 lamp (see
Figure 3-2). To remove the existing QT 8500 lamp, reach inside the
reflector and carefully pull the lamp straight out of the socket. Lift
the old lamp out of the reflector and discard.
Caution: Do not squeeze the lamp glass when removing
the old lamp from the socket. Lamp glass may
shatter.

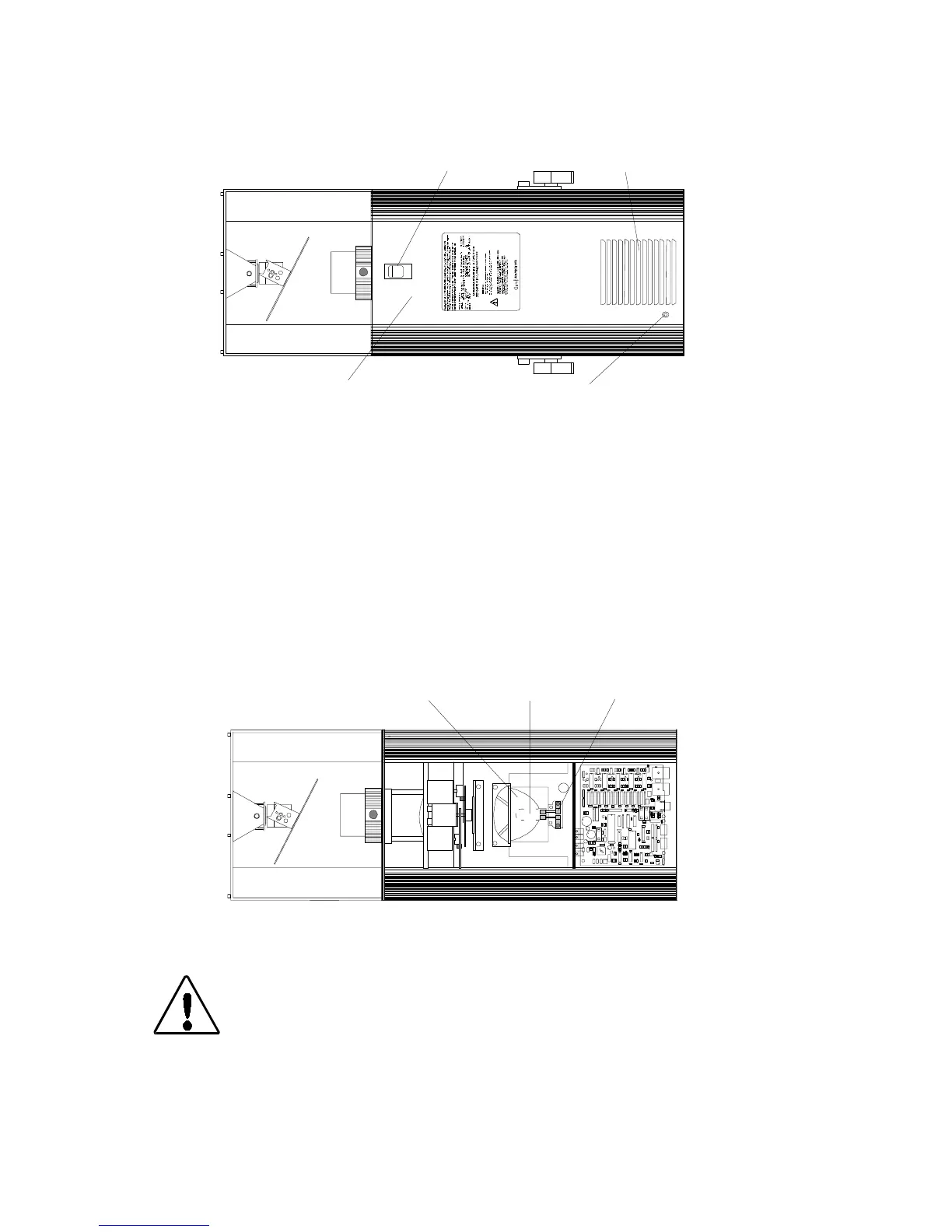

Figure 3-1. Underside of Trackspot
cooling fan intake
safety cable connection point
on inside surface
thumb latch
access door
Figure 3-2. Underside of Trackspot with access door removed
QT 8500 lamp
socket
reflector
