Video Security Control Panel User Manual

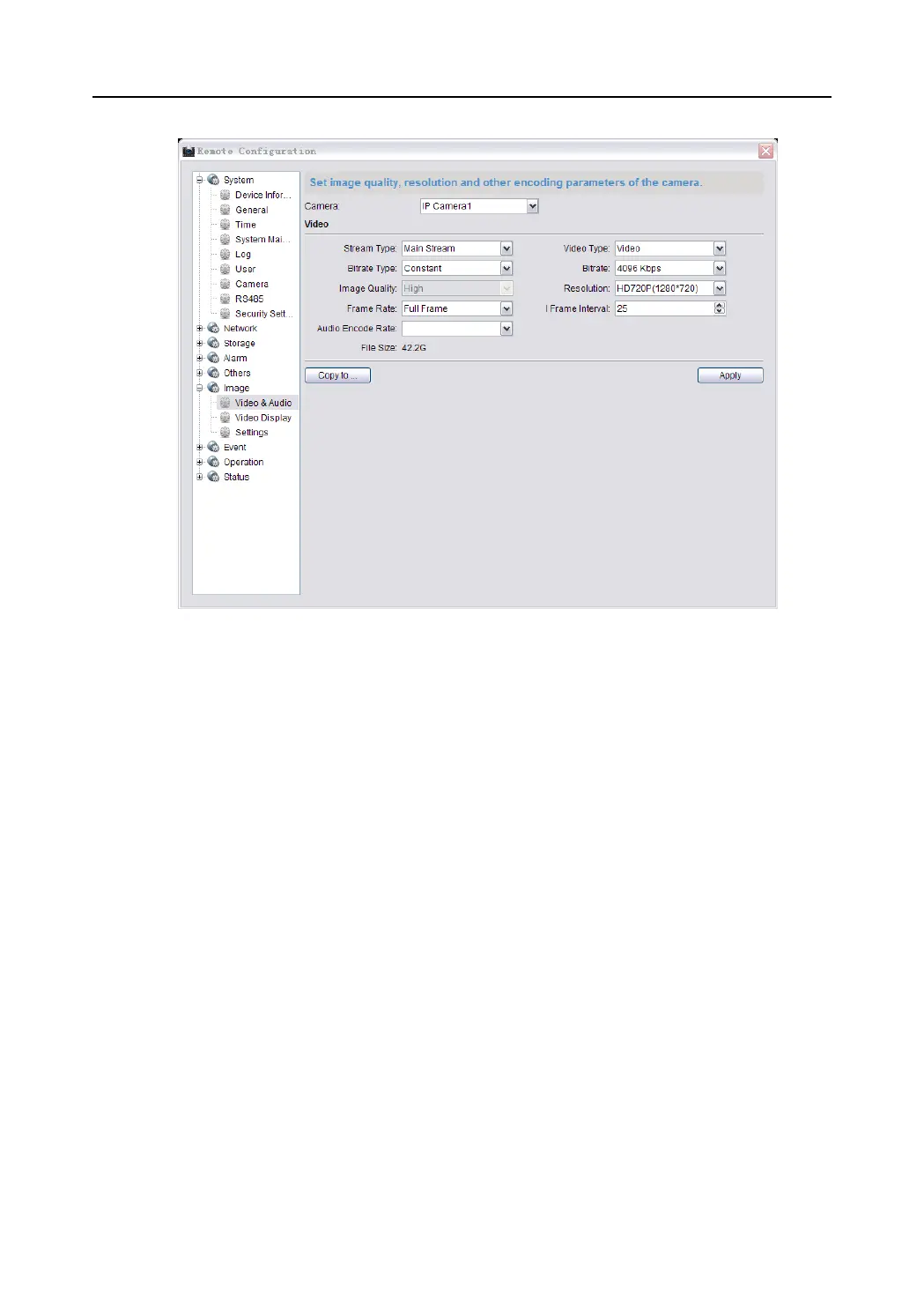

2. Select a camera needs to be configured.
3. Edit the general video parameters.
Scream Type: The main stream is usually for recording and live viewing with good bandwidth, and the
sub-stream can be used for live viewing when the bandwidth is limited.
Video Type: Select the stream type to video stream, or video & audio composite stream.
Bitrate Type: Select the bitrate type to constant or variable.
Resolution: Select the resolution of the video output.
Frame Rate: The frame rate is to describe the frequency at which the video stream is updated and it is
measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the
video stream, as it maintains image quality throughout.
I Frame Interval: Set the I-Frame interval from 1 to 400.
4. Click Copy to to copy all these settings to other Zones.
5. Click Apply to save the settings.
