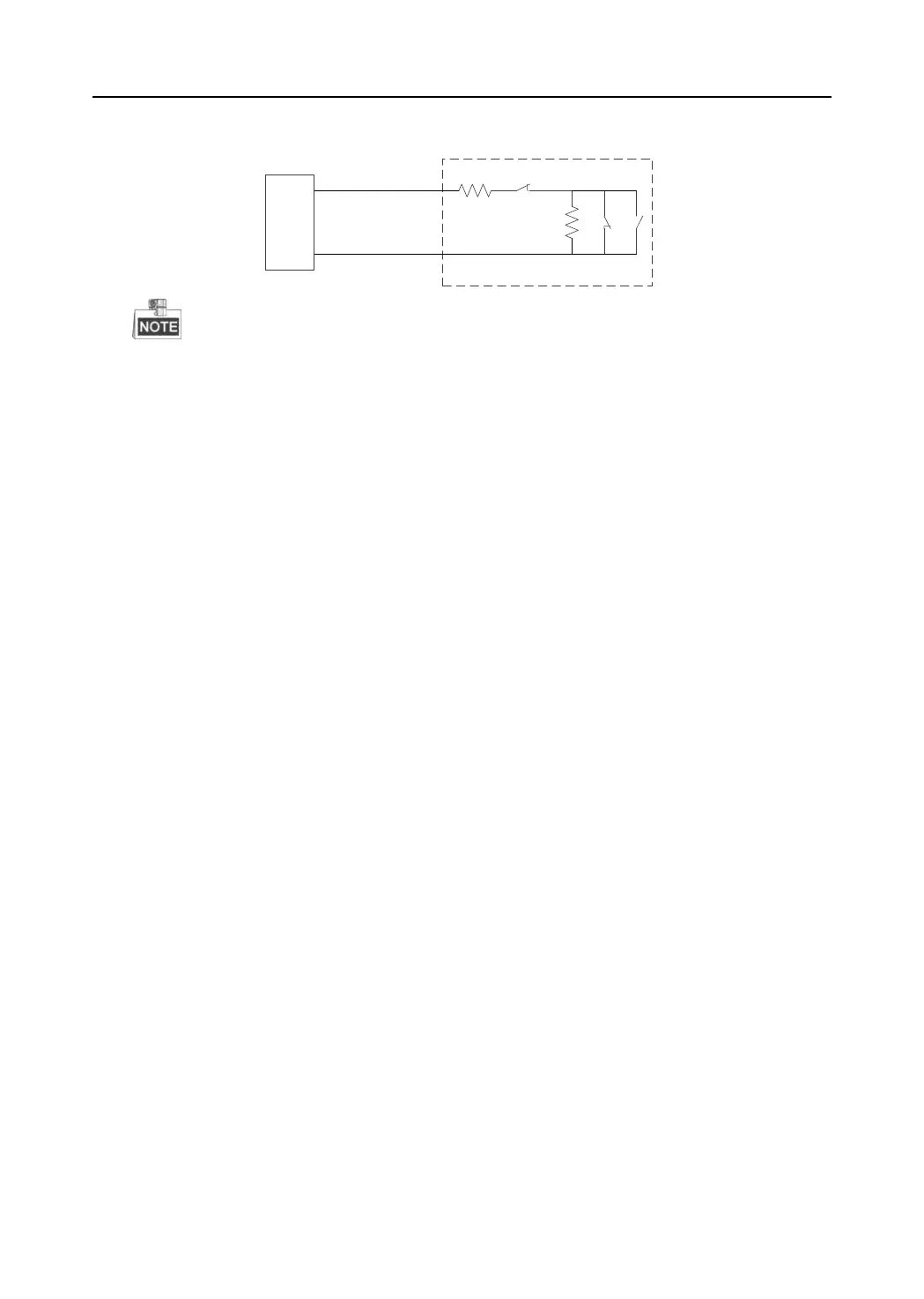

The Tamper-proof wiring is shown below.
2.2KΩ
2.2KΩ
ZONE
GND
DETECTOR
N.C.
N.O.
TAMPER
Wiring Alarm Output 2.2.2
Take the model of DS-19S08-04F/Kx (Gx) as an example, the alarm output interfaces of the video security control
panel are show as follows.
 The resistance of 2.2KΩ or 3.3KΩ supports tamper-proof and non-tamper-proof wiring.
 The resistance of 4.7KΩ only supports tamper-proof wiring.
 The resistance of 5.6KΩor 8.2KΩ only supports non-tamper-proof wiring.
