Video Security Control Panel User Manual
--18--

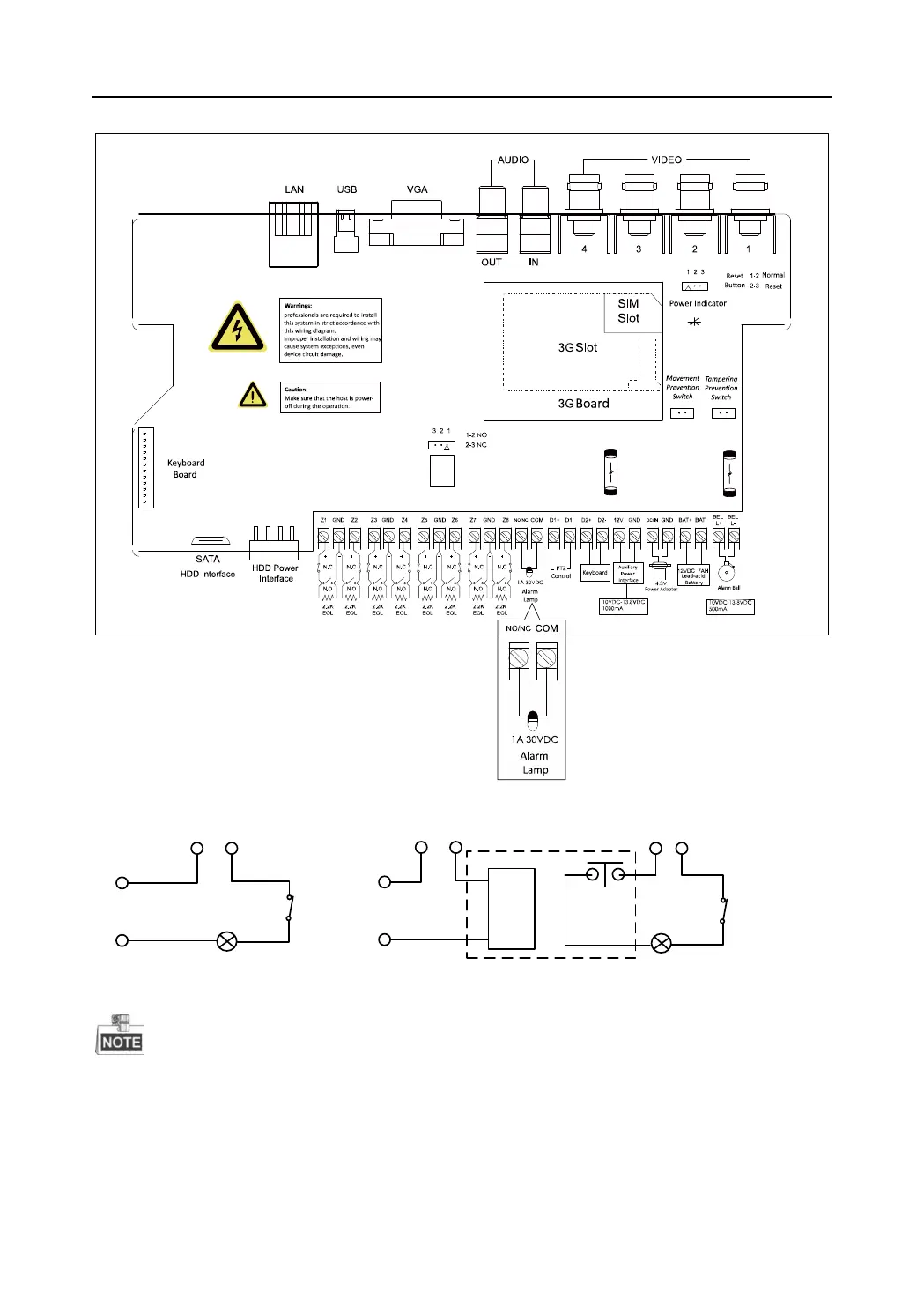

The wiring of alarm output is shown as follows:
External Device
NO/NC
COM
DC12V
Breaker
External DC Load
External Device
NO/NC
COM
DC12V
Breaker
AC220V
External AC Load
Relay
The DC current supplied by the control panel can be used for external devices. The load current cannot be over
1A.
