Network Video Recorder User Manual
152

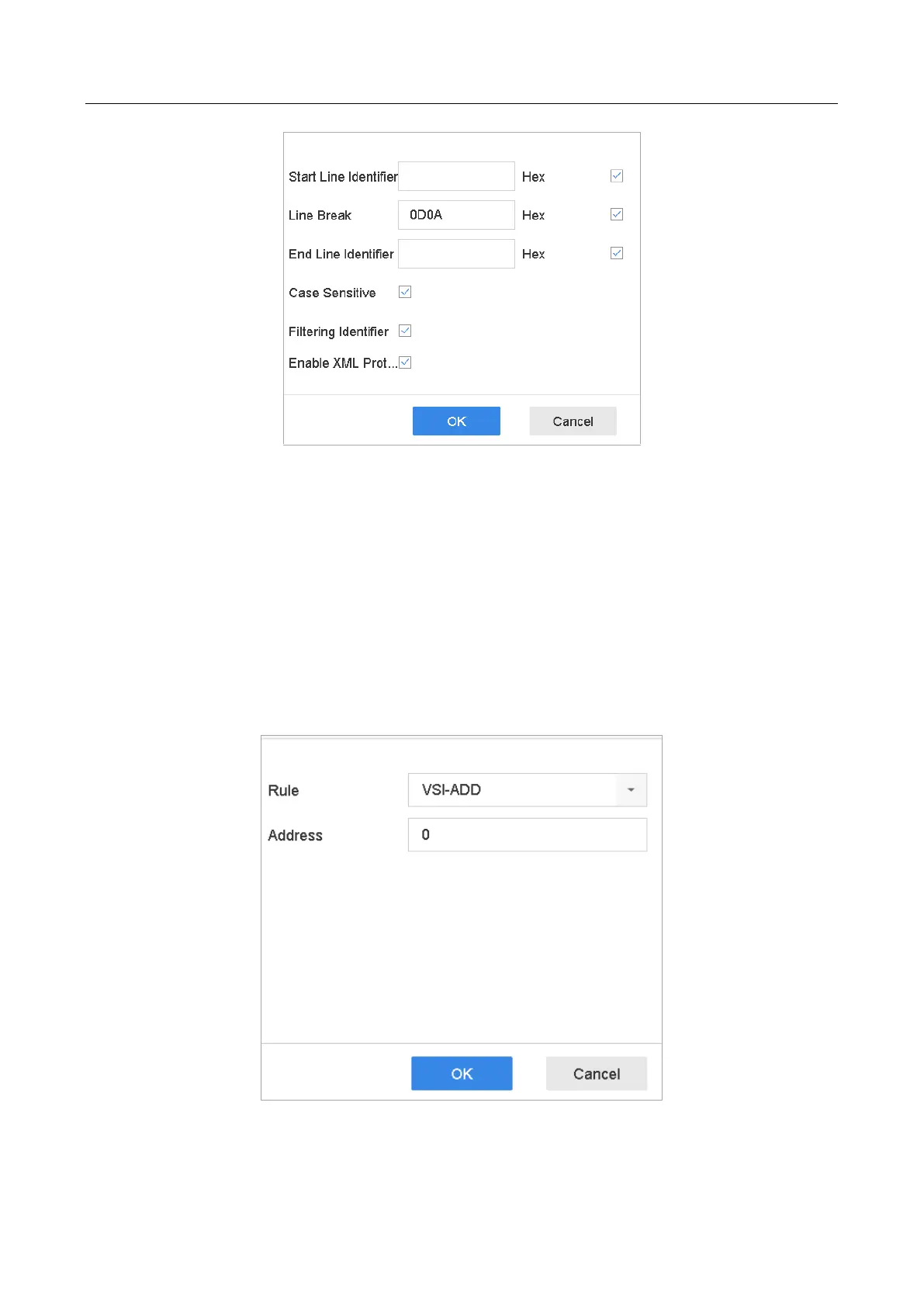

Figure 14-2 Universal Protocol Settings
EPSON
The fixed start and end line tag are used for EPSON protocol.
AVE
The fixed start and end line tag are used for AVE protocol. Serial port and virtual serial port
connection types are supported.
1) Click Custom to configure the AVE settings.
2) Set the rule to VSI-ADD or VNET.
3) Set the address bit of the POS message to send.
4) Click OK to save the settings.
Figure 14-3 AVE Settings
