 NUCLEUS
1) Click the Custom to configure the NUCLEUS settings.
2) Enter the employee No., shift No., and the terminal No. in the field. The matching message sent from the POS
device will be used as the valid POS data.
The NUCLEUS protocol must be used in the RS-232 connection communication.
Step 6 Set the connection mode to TCP Reception, UDP Reception, Multicast, RS-232, USB-to-RS-232, or
Sniff, and click Parameters to configure the parameters for each connection mode.
 TCP Connection
1) When using TCP connection, the port must be set from 1 to 65535, and the port for each POS machine must be
unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.

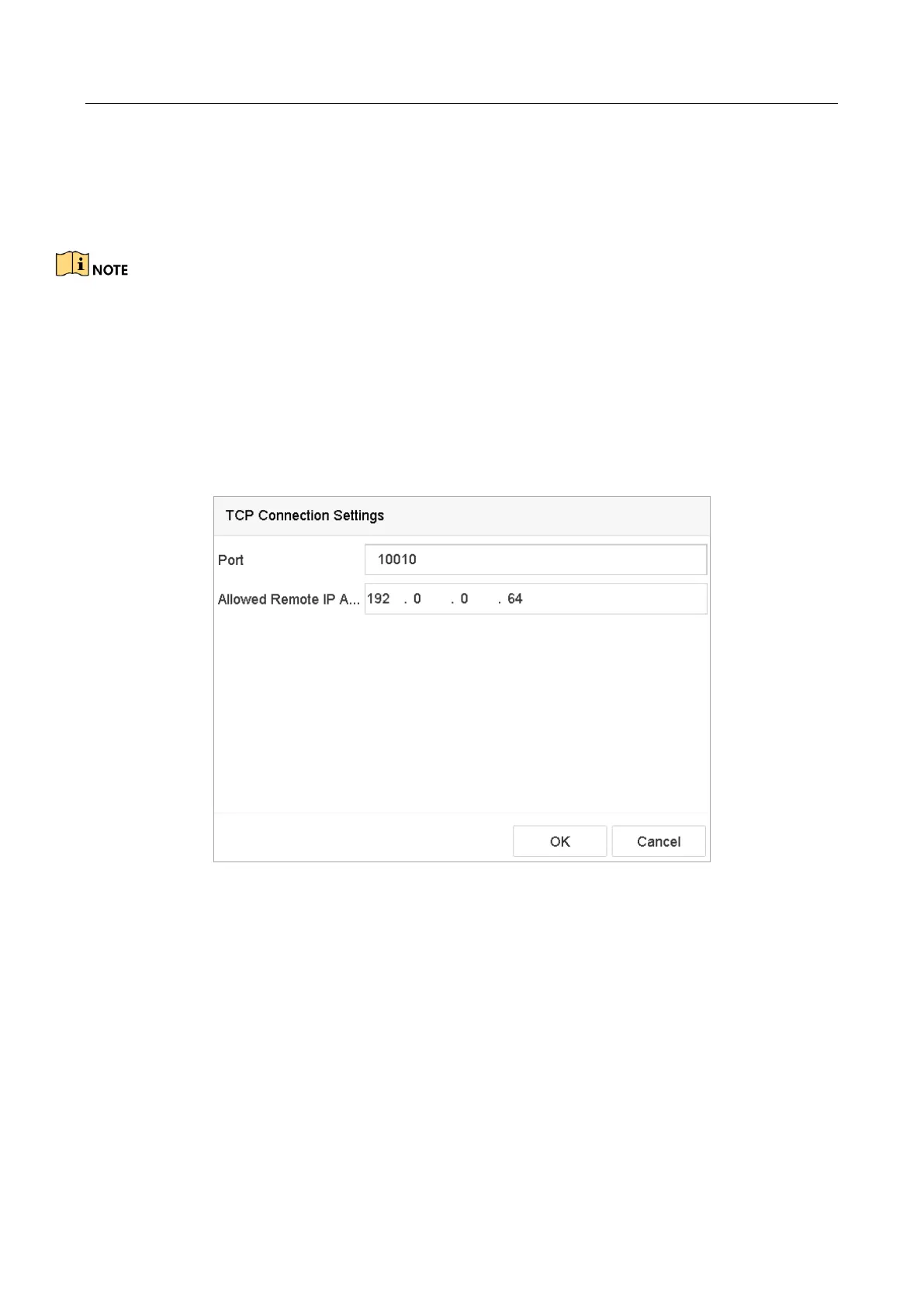

Figure 14-4 TCP Connection Settings
 UDP Connection
1) When using UDP connection, the port must be set from 1 to 65535, and the port for each POS machine must
be unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.
 USB-to-RS-232 Connection
Configure the USB-to-RS-232 convertor port parameters, including the port serial number, baud
rate, data bit, stop bit, parity, and flow ctrl.

HIKVISION DS-9616NI-I8 Specifications

General

Sequence mode	Yes
Internal memory	4096 MB
Number of users	128 user(s)
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Internal memory type	DDR4
Throughput data rate	256 Mbit/s
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
RAID levels	0, 1, 5, 10
HDD capacity	8000 GB
HDD interface	Serial ATA
Maximum storage capacity	- TB
Number of HDDs installed	-
Number of HDDs supported	8
Total installed storage capacity	16000 GB
Product color	Black
Rack capacity	2U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	200 W

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
