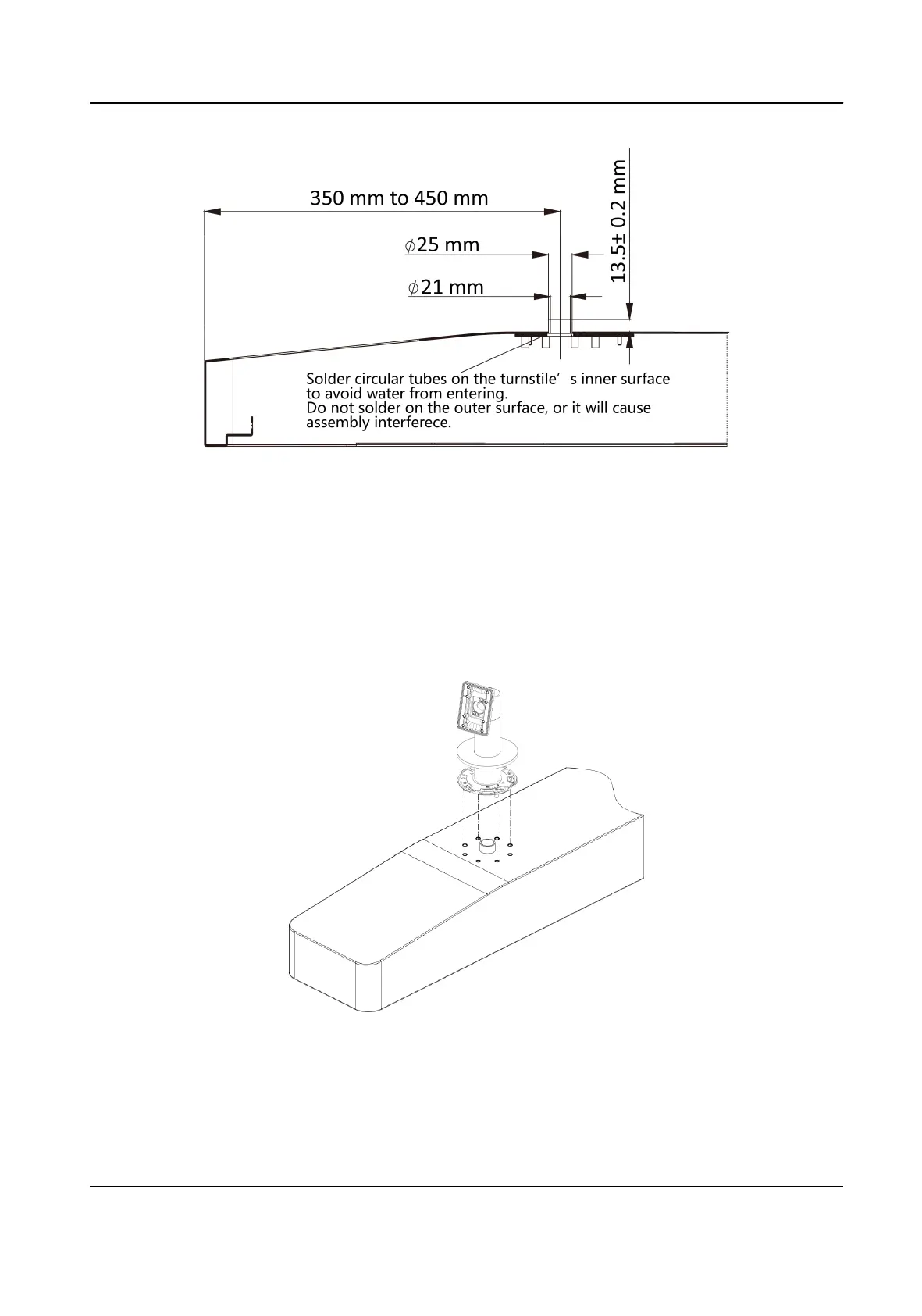

Figure 3-16 Solder Tubes
Cylinder Bracket Mounng
Steps
1. Ins
tall the base on the turnsle.
1) Align the hole on the turnsle and place the base on the turnsle.
2) Rotate the base to the acquired place and make sure the device will face a correct direcon.
3) Secure the base with 4 SC-OM6×12-H-SUS screws.
Figure 3-17 Install Base
2. Fix the mounng plate into the bracket by 4 SC-K1M4×8-SUS screws.
