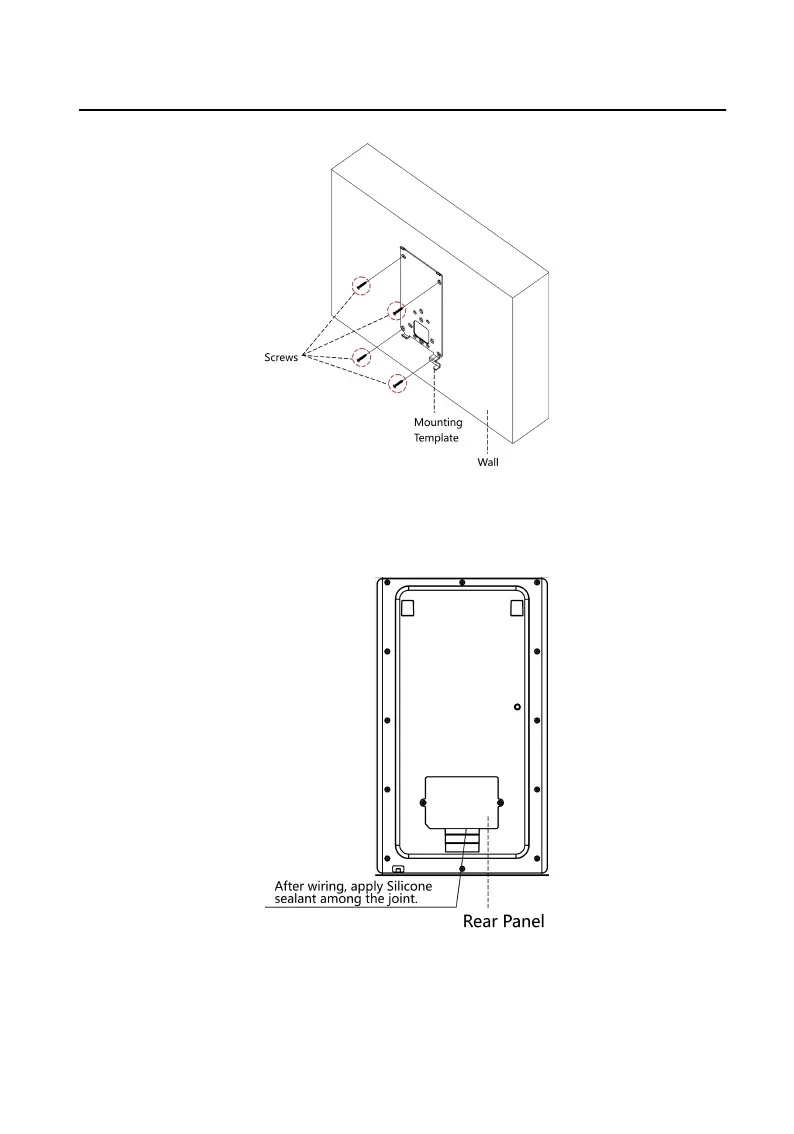

Figure 4-4 Fix Mounng Plate
3. Wire the device and cover the rear panel with 2 screws. Apply Sillicone sealant
among the joints.
Figure 4-5 Seal Rear Panel
4. Fix the device to the mounng plate and x the device with the set screw.
Video Intercom Face
Recognion Door Staon User Manual
11
