The dimensions of the mounng plate is 113.5 mm (W) × 214 mm (H) × 23.5
mm (D).
Gang Box

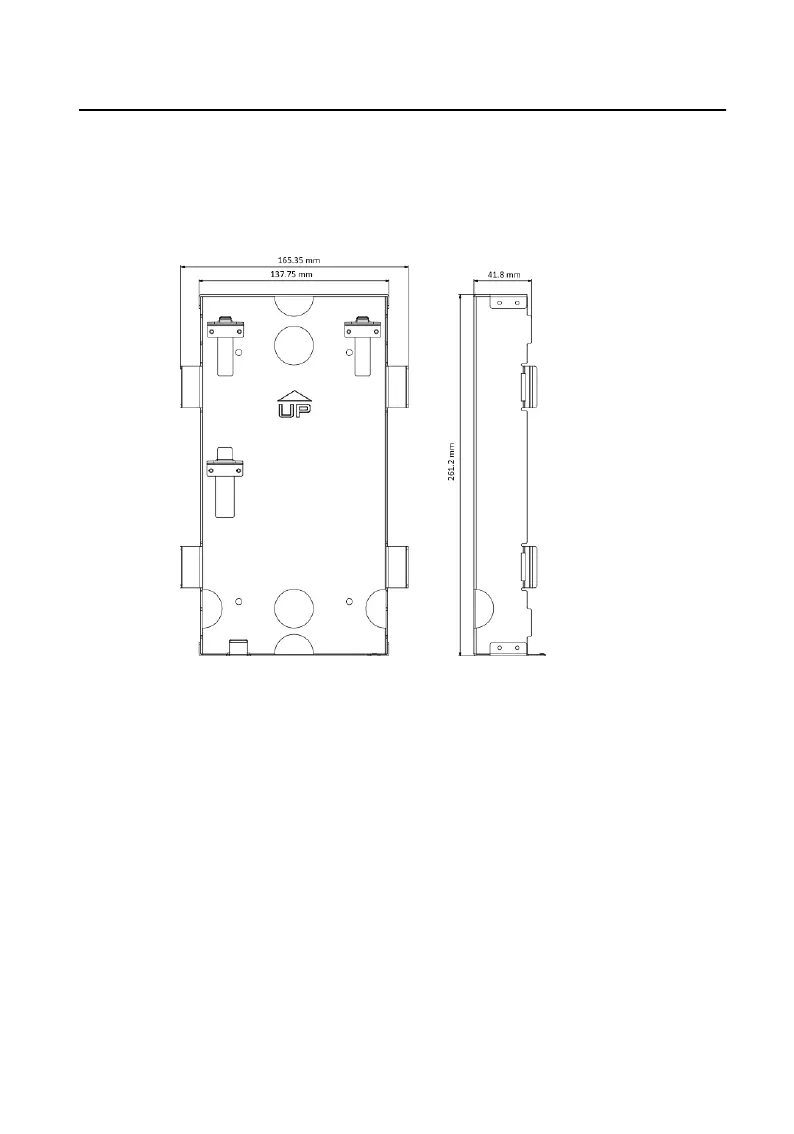

Figure 4-3 Gang Box
The dimensions of the gang box is 137.75 mm (W) × 261.2 mm (H) × 41.8
mm (D).
4.1.2 Surface
Mounng
Steps
1. Paste the
mounng template on the wall according to the installaon
requirements. Drill holes according to the template. Insert the expansion bolts
into the screw holes.
2. Fix the mounng plate to the wall with 4 supplied screws.
Video Intercom Face
Recognion Door Staon User Manual
10
