4.2.3 Flush Mounng with Gang Box
Before You Start
The gang box for ush mounng of the door staon with sub module is not
contained in the package. Please contact us for purchase need.
Steps
1. Cave an
installaon hole on the wall. Pull out the cable from the wall.

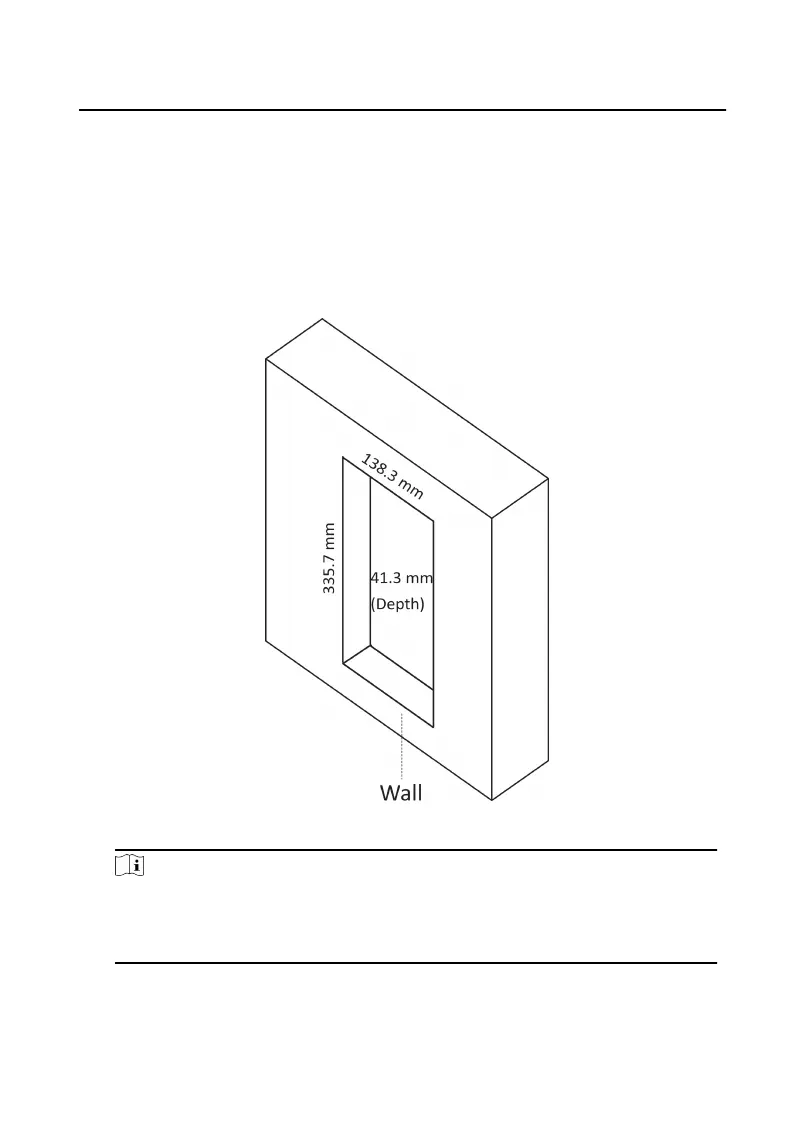

Figure 4-19 Cave Installaon Hole
Note
The suggested dimension of the installaon hole is 138.3 mm (W) × 335.7 mm
(H) × 41.3 mm (D).
The suggested length of the cables le outside is 250 mm.
2. Install the gang box into the wall.
1) Insert the gang box into the installaon hole. Mark the posion of the gang box
screw holes with a marker, and take out the gang box.
Video Intercom Face
Recognion Door Staon User Manual
21
