5 Sub Module Descripon
Both keypad module and ngerprint module are supported by the door staon.
Select a sub module according to your actual needs.

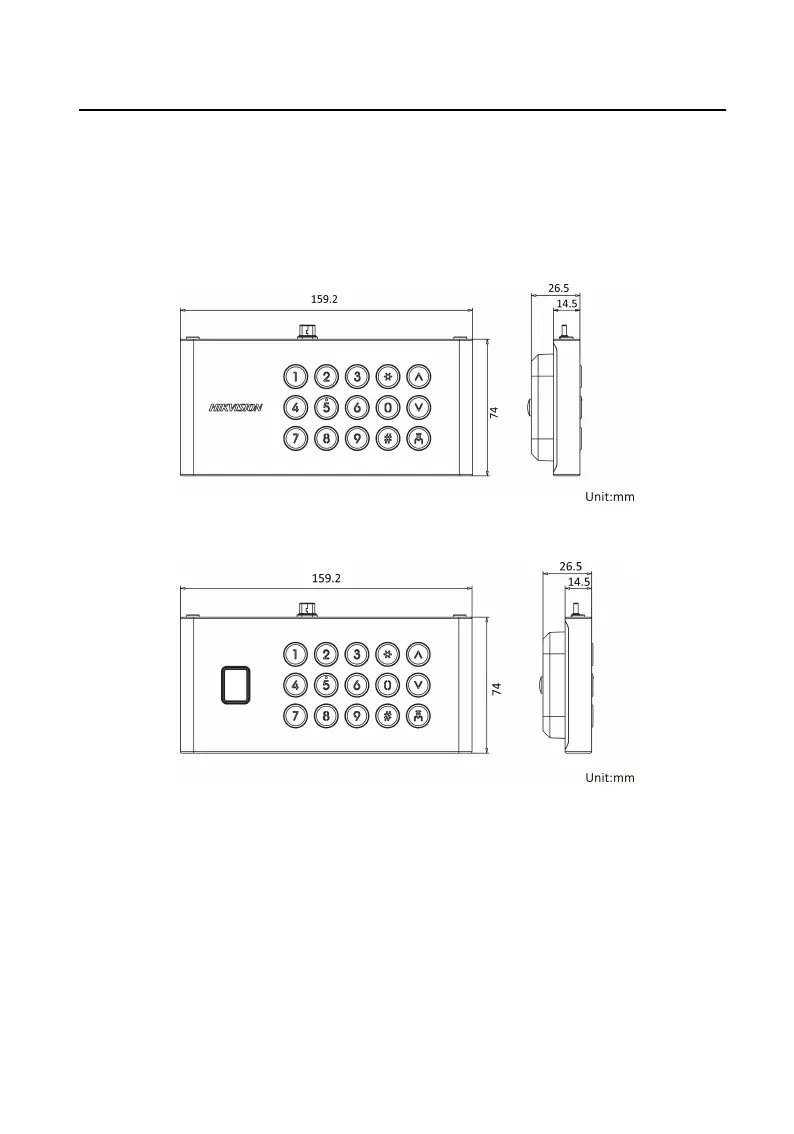

Figure 5-1 Keypad Module
Figure 5-2 Fingerprint Module
Aer installaon, power on the device. Door staon will recognize the sub module
automacally.
Device will restart automacally in 10 s when the sub module is removed from the
door staon. Turn o the device before plugging the sub module to the door staon.
