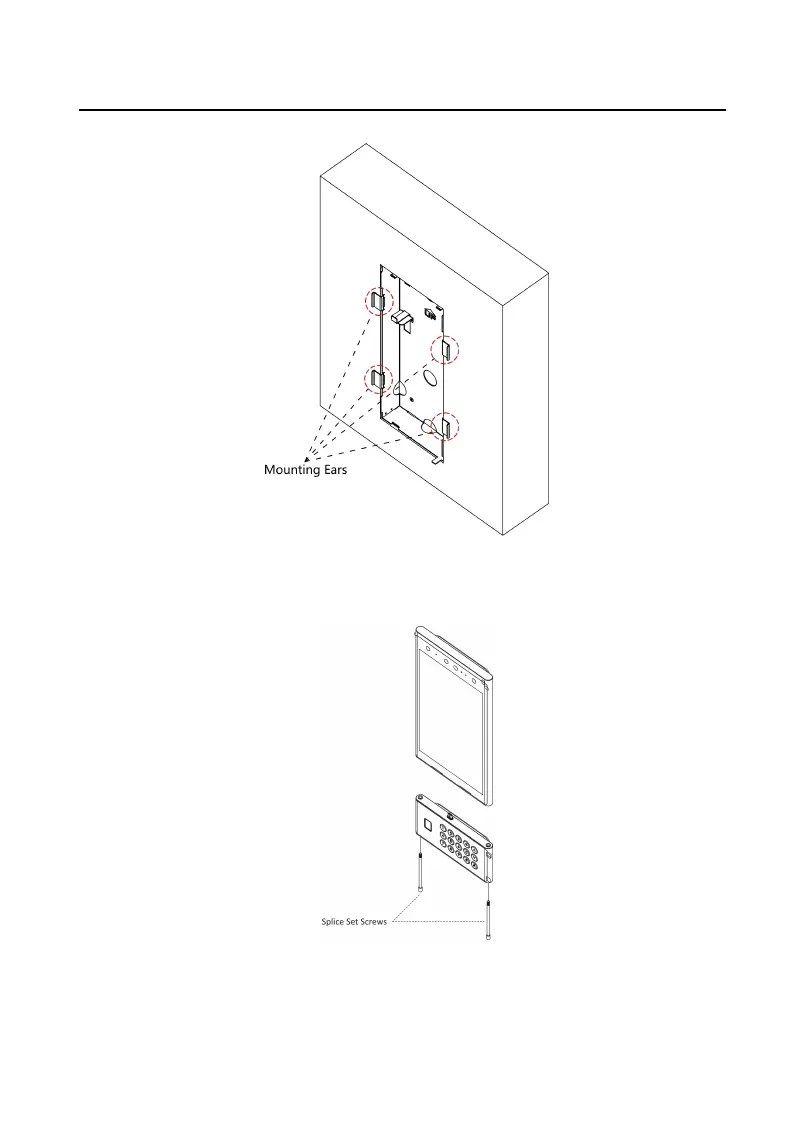

Figure 4-21 Remove Mounng Ear
4. Fix the sub module to the door staon with 2 set screws.
Figure 4-22 Fix Sub Module
5. Wire the device and cover the rear panel with 2 screws. Apply Silicone sealant
among the joint.
Video Intercom Face
Recognion Door Staon User Manual
23
