NVR User Manual 061220NA 103

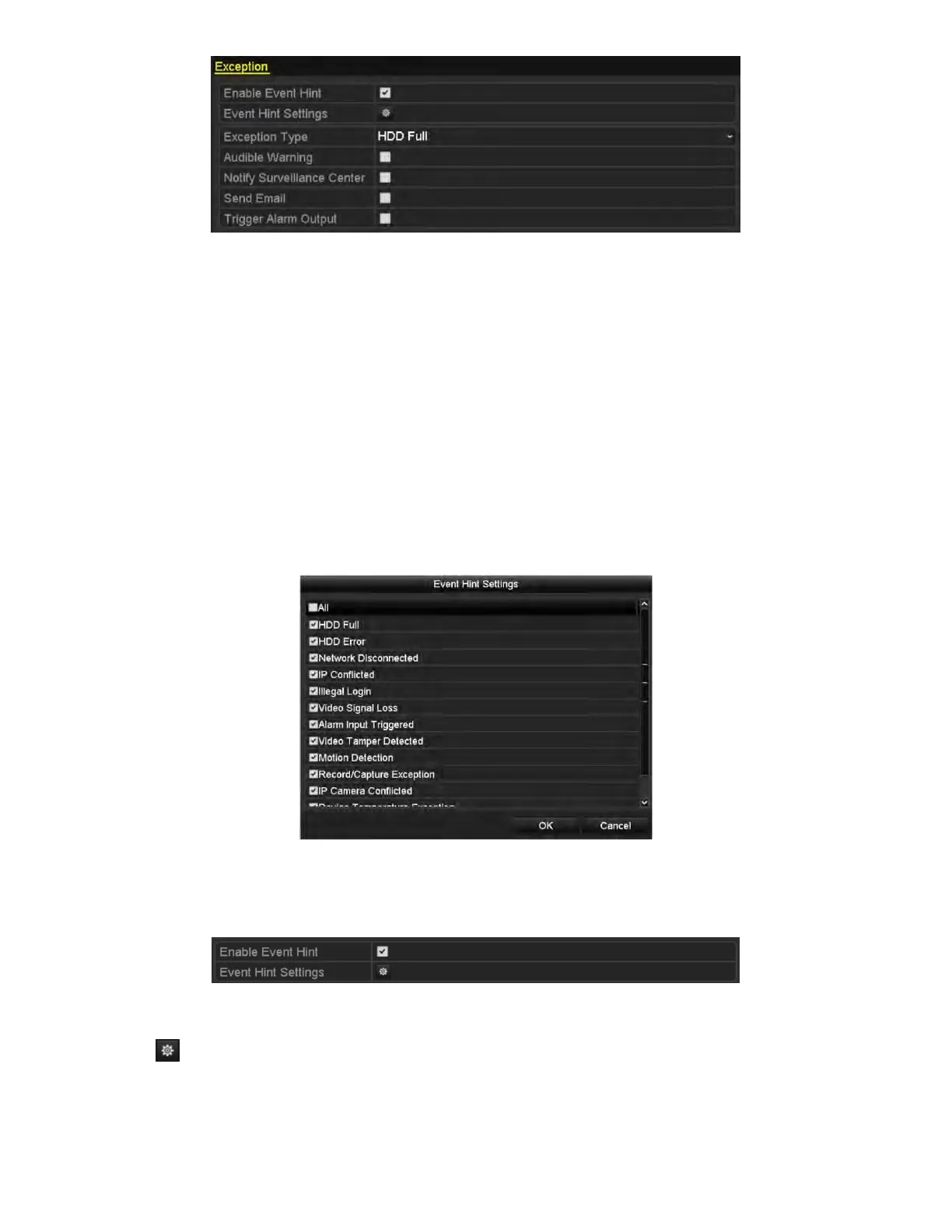

Figure 146, Exceptions Setup Interface
8.6 Setting Alarm Response Actions
Purpose
Alarm response actions will be activated when an alarm or exception occurs, including Event Hint Display,
Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Trigger Alarm Output, and
Send Email.
Event Hint Display
When an event or exception happens, a hint can be displayed on the lower-left corner of live view image.
Click the hint icon to check the details. Besides, the event to be displayed is configurable.
1. Enter the Exception settings interface, Menu > Configuration > Exceptions.
Figure 147, Event Hint Settings Interface
2. Check the Enable Event Hint checkbox.
Figure 148, Event Hint Settings Interface
3. Click the button to set the type of event to be displayed on the image.
