NVR User Manual 061220NA 24

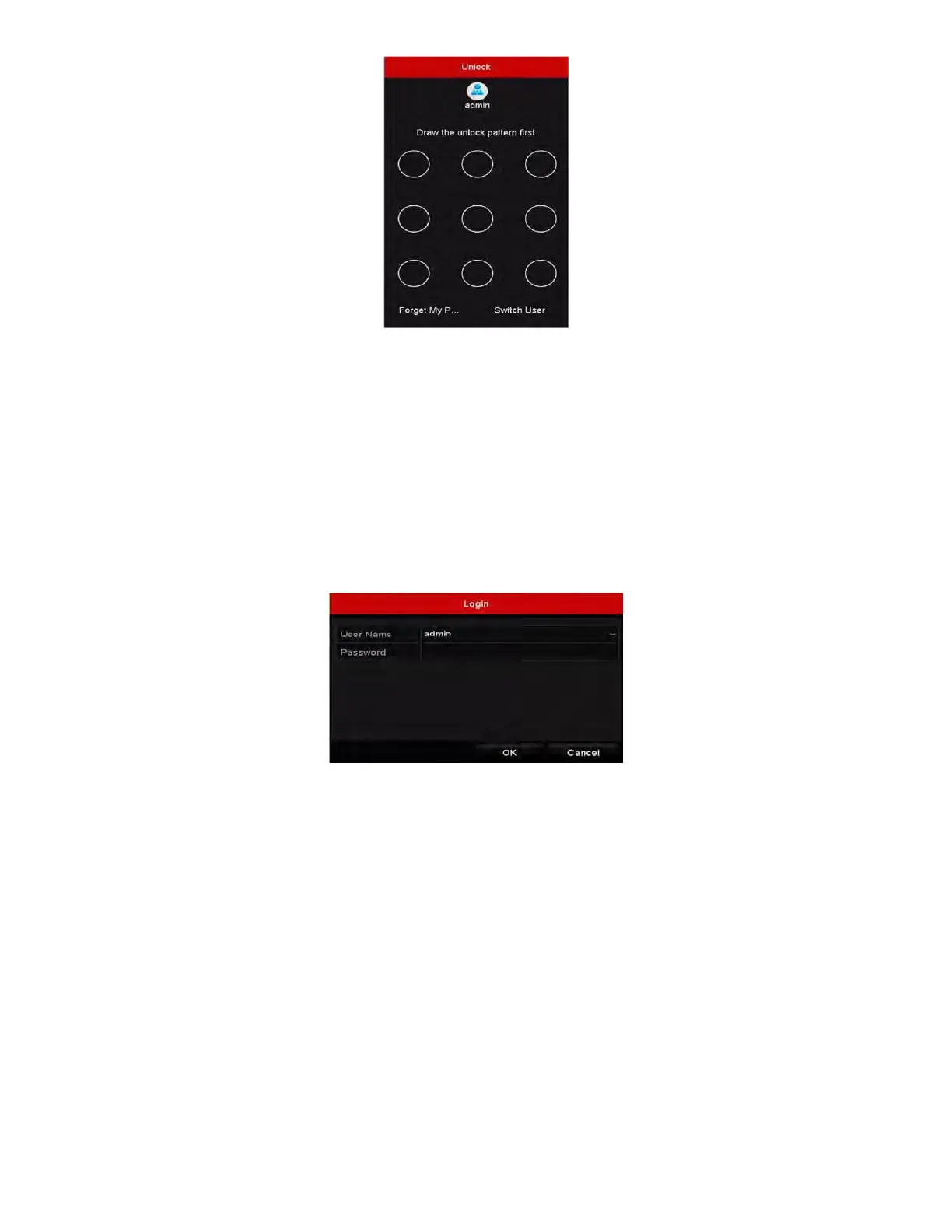

Figure 15, Draw the Unlock Pattern
2. Draw the pre-defined pattern to unlock to enter the menu operation.
NOTE: If you forget your pattern, select Forget My Pattern or Switch User to enter the normal
login dialog box.
If the pattern you draw is different from the pattern you have configured, try again.
If you draw the wrong pattern more than five times, the system will switch to the normal
login mode automatically.
Figure 16, Normal Login Dialog Box
2.1.4
Login and Logout
User Login
Purpose
If the NVR has logged out, you must login the device before operating the menu and other functions.
1. Select the User Name in the drop-down list.
