NVR User Manual 061220NA 122

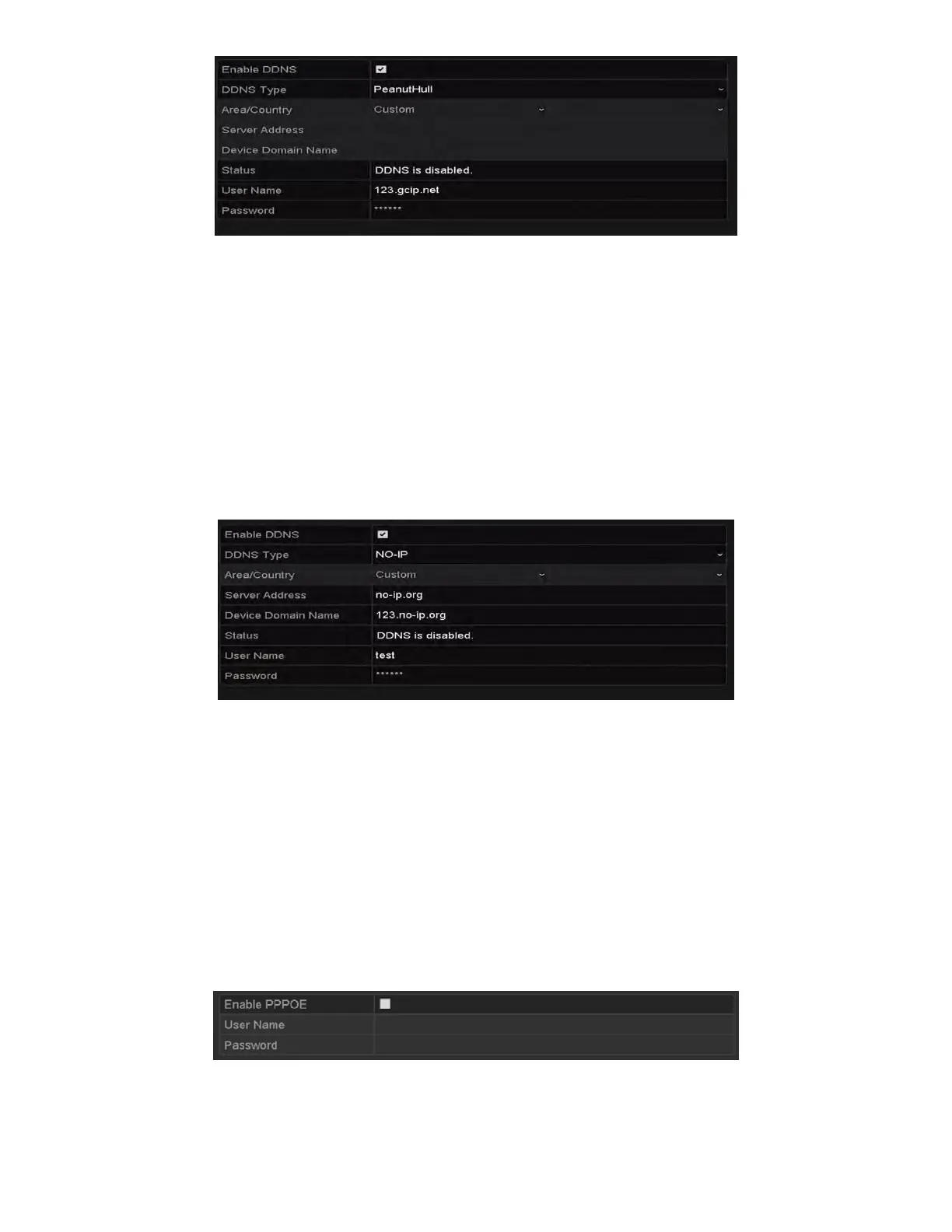

Figure 173, PeanutHull Settings Interface
• NO-IP
1) Enter the account information in the corresponding fields. Refer to the DynDNS settings.
2) Enter Server Address for NO-IP.
3) In the Device Domain Name text field, enter the domain obtained from the NO-IP Website
(www.no-ip.com).
4) Enter the User Name and Password registered in the NO-IP Website.
Figure 174, NO-IP Settings Interface
5. Click the Apply button to save and exit the interface.
11.2.3
Configuring PPPoE
Purpose
Your NVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE).
1. Enter the Network Settings interface, Menu > Configuration > Network.
2. Select the PPPoE tab to enter the PPPoE Settings interface.
Figure 175, PPPoE Settings Interface
3. Check the PPPoE checkbox to enable this feature.
To Next Page
