NVR User Manual 061220NA 128

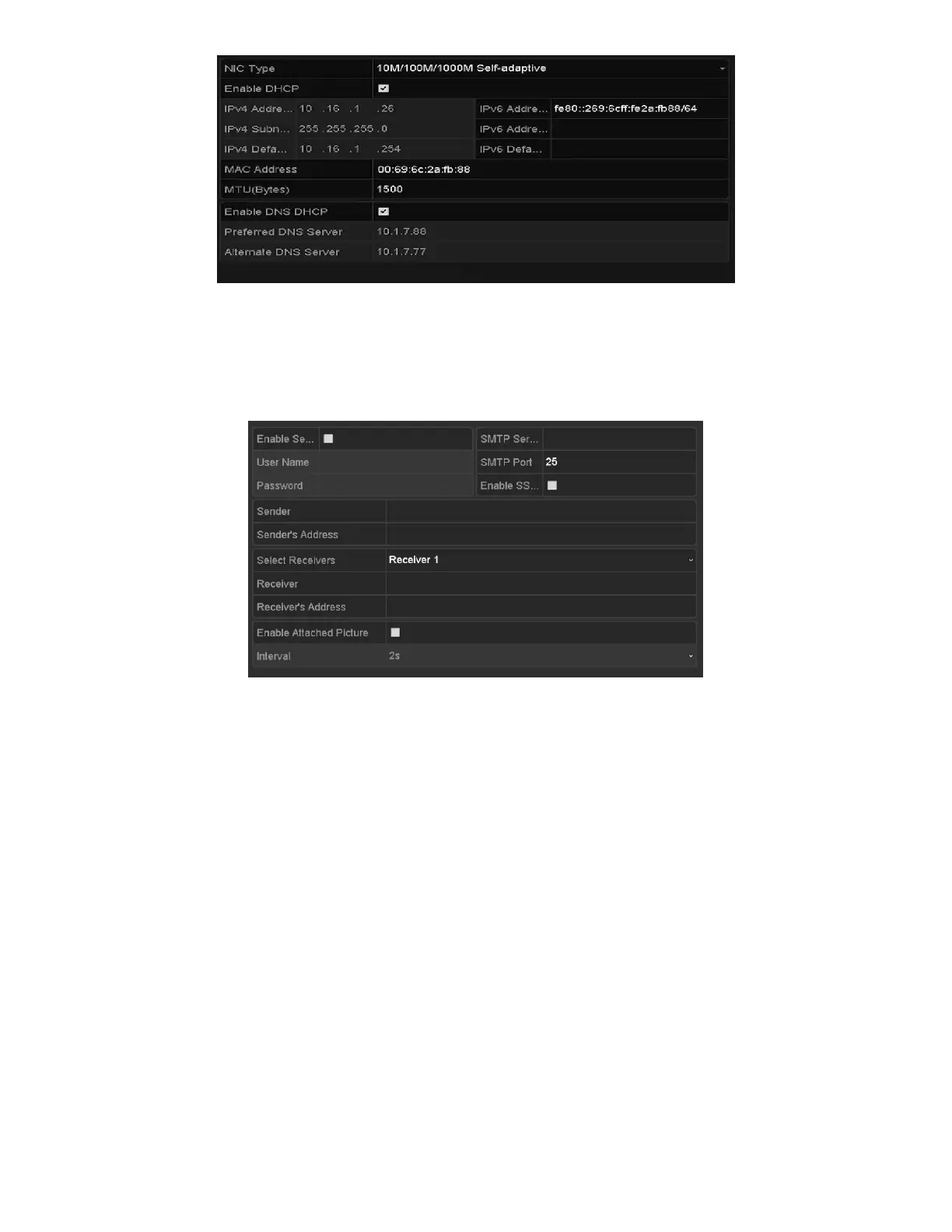

Figure 185, Network Settings Interface
3. Click Apply to save the settings.
4. Select the E-mail tab to enter the E-mail Settings interface.
Figure 186, E-Mail Settings Interface
5. Configure the following e-mail settings:
• Enable Server Authentication (optional): Check the checkbox to enable the server authentication
feature
• User Name: The user name of sender’s account registered on the SMTP server
• Password: The password of sender’s account registered on the SMTP server
• SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com)
• SMTP Port: The SMTP port, the default TCP/IP port used for SMTP is 25
• Enable SSL/TLS (optional): Click the checkbox to enable SSL/TLS if required by the SMTP server.
• S
ender: The name of sender
• Sender’s Address: The e-mail address of sender
• Select Receivers: Select the receiver; up to three receivers can be configured
