NVR User Manual 061220NA 139

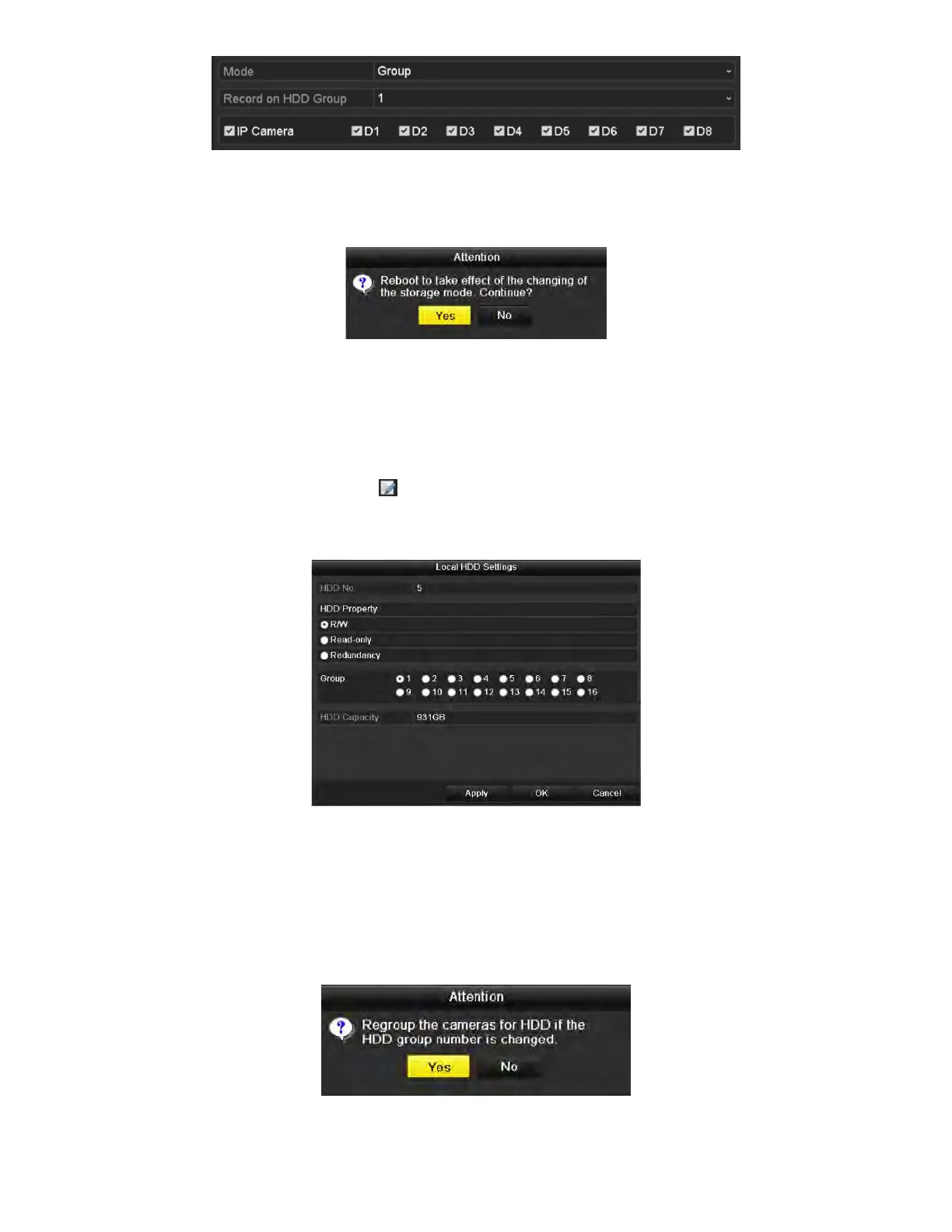

Figure 211, Storage Mode Interface
3. Click the Apply button, and the following Attention box will pop up.
Figure 212, Attention for Reboot
4. Click the Yes button to reboot the device to activate the changes.
5. After rebooting device, enter the HDD Information interface, Menu > HDD > General.
6. Select HDD from the list and click the icon to enter the Local HDD Settings interface.
Figure 213, Local HDD Settings Interface
7. Select the Group number for the current HDD.
NOTE: The default group no. for each HDD is 1.
8. Click the OK button to confirm the settings.
Figure 214, Confirm HDD Group Settings
9. In the pop-up Attention box, click the Yes button to finish the settings.
