NVR User Manual 061220NA 41
2. Click the radio button of each POE channel to switch and . You can click the PoE Channel radio
button to enable or disable the long network cable mode.
• ON: Long-distance (100− 300 meters) network transmissions via PoE interface.
• OFF: Short-distance (<100 meters) network transmission via PoE interface.

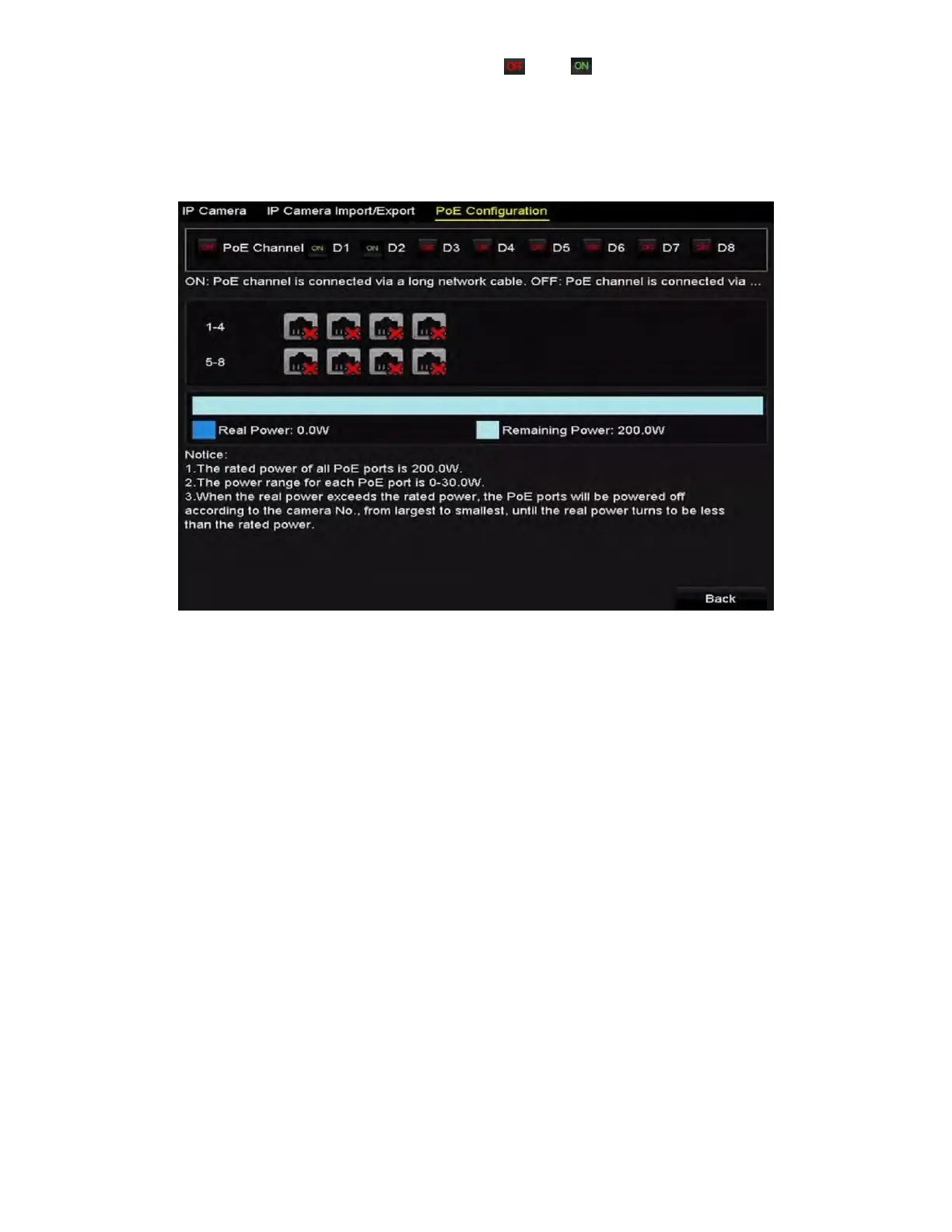

Figure 44, Configure PoE Interface
NOTE: The PoE is enabled with the short network cable mode (OFF) by default.
The bandwidth of IP camera connected to the PoE via long network cable (100−300
meters) cannot exceed 6 MP.
The allowed maximum long network cable may be less than 300 meters depending on IP
camera model and cable materials.
When the transmission distance reaches 100 to 250 meters, you must use CAT5E or CAT6
network cable to connect with the PoE interface.
When the transmission distance reaches 250 to 300 meters, you must use CAT6 network
cable to connect with the PoE interface.
Refer to the Appendix 16.3 List of IP Cameras Connected to PoE by Long Network Cable
(100−300 m) for the list of IP cameras.
You can check the connecting status and power information of PoE channel on the
interface.
3. Click Back to finish the settings.
