NVR User Manual 061220NA 58
• If the HDD mode is Group, set the HDD group. For detailed information, see
Configuring HDD Group
for Recording.

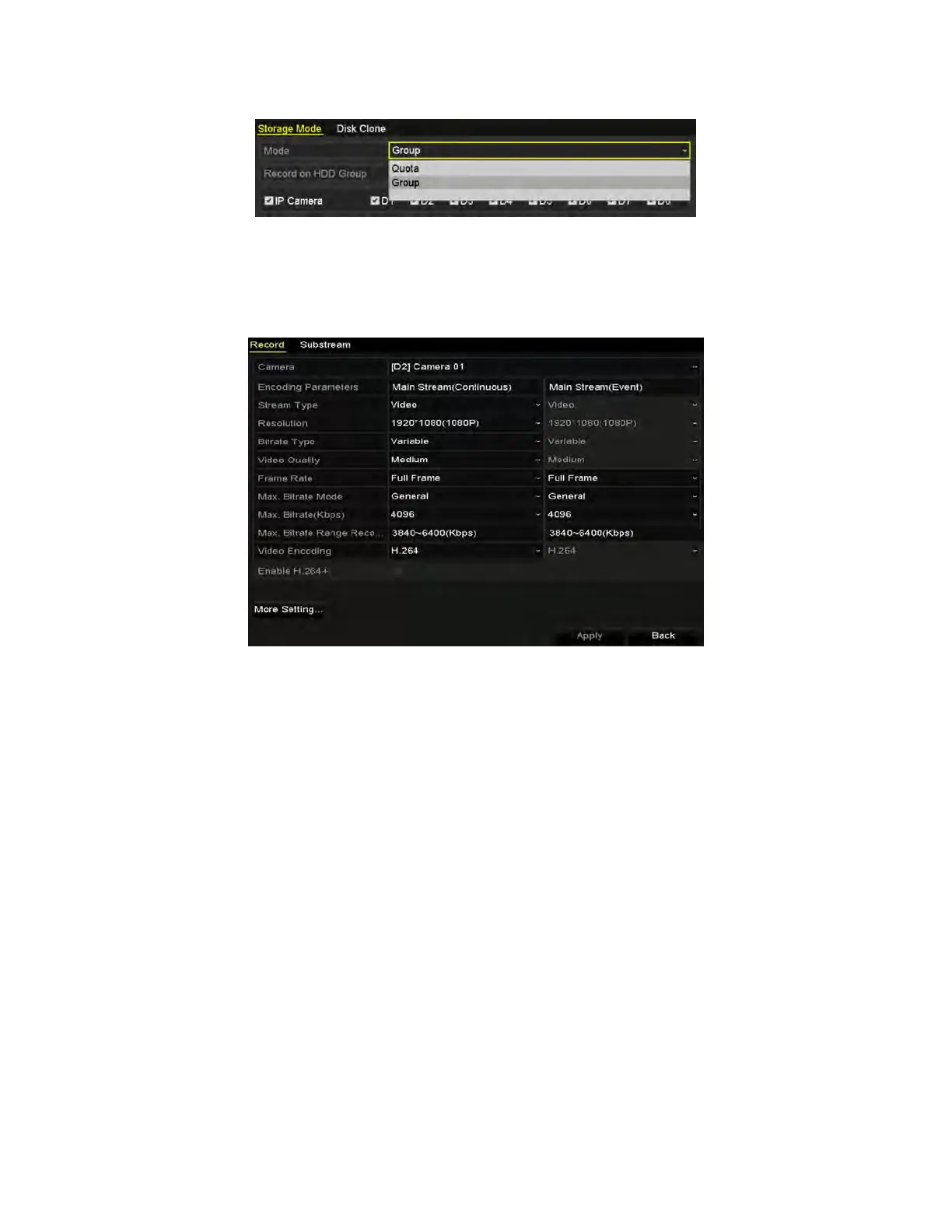

Figure 69, HDD−Advanced
3. Enter the Record settings interface to configure the recording parameters: Menu > Record >
Parameters.
Figure 70, Recording Parameters
4. Set recording parameters
1) Select Record tab page to configure. You can configure the stream type, the resolution, and other
parameters on demand.
• Video Encode: Set the video encoding to H.265 or H.264.
• Enable H.264+ Mode: Check the checkbox to enable. Once enabled, the Max. Bitrate Mode, Max.
Bitrate (Kbps) and Max. Bitrate Range Recommend are not configurable. Enabling it helps to
ensure high video quality with a lowered bitrate.
NOTE: The H.265 and H.264+ should be supported by the connected IP camera.
2) Click the More Settings button to set the advanced parameters for recording, and then click the OK
button to finish editing.
