NVR User Manual 061220NA 96

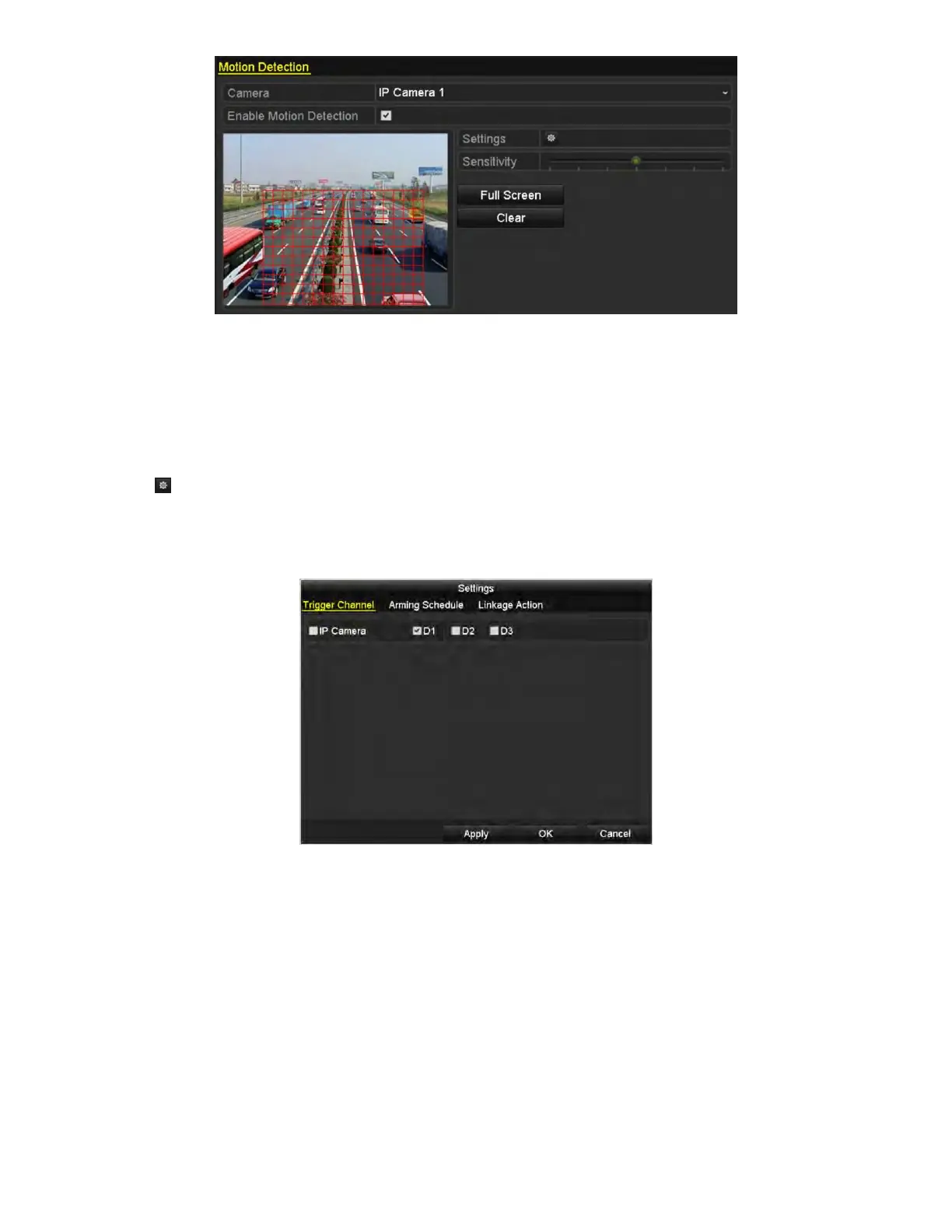

Figure 134, Motion Detection Setup Interface
2. Set up detection area and sensitivity.
3. Tick “Enable Motion Detection,” use the mouse to draw detection area(s), and drag the sensitivity bar
to set sensitivity.
4. Click the button, and set alarm response actions.
5. Click the Trigger Channel tab, and select one or more channels that will start to record/capture or
become full-screen monitoring when motion alarm is triggered, and click Apply to save the settings.
Figure 135, Set Trigger Camera of Motion Detection
6. Set up arming schedule of the channel.
1) Select Arming Schedule tab to set the arming schedule of handling actions for the motion
detection.
2) Choose one day of a week, and up to eight time periods can be set within each day.
3) Click Apply to save the settings
NOTE: Time periods shall not repeat or overlap.
