NVR User Manual 061220NA 98

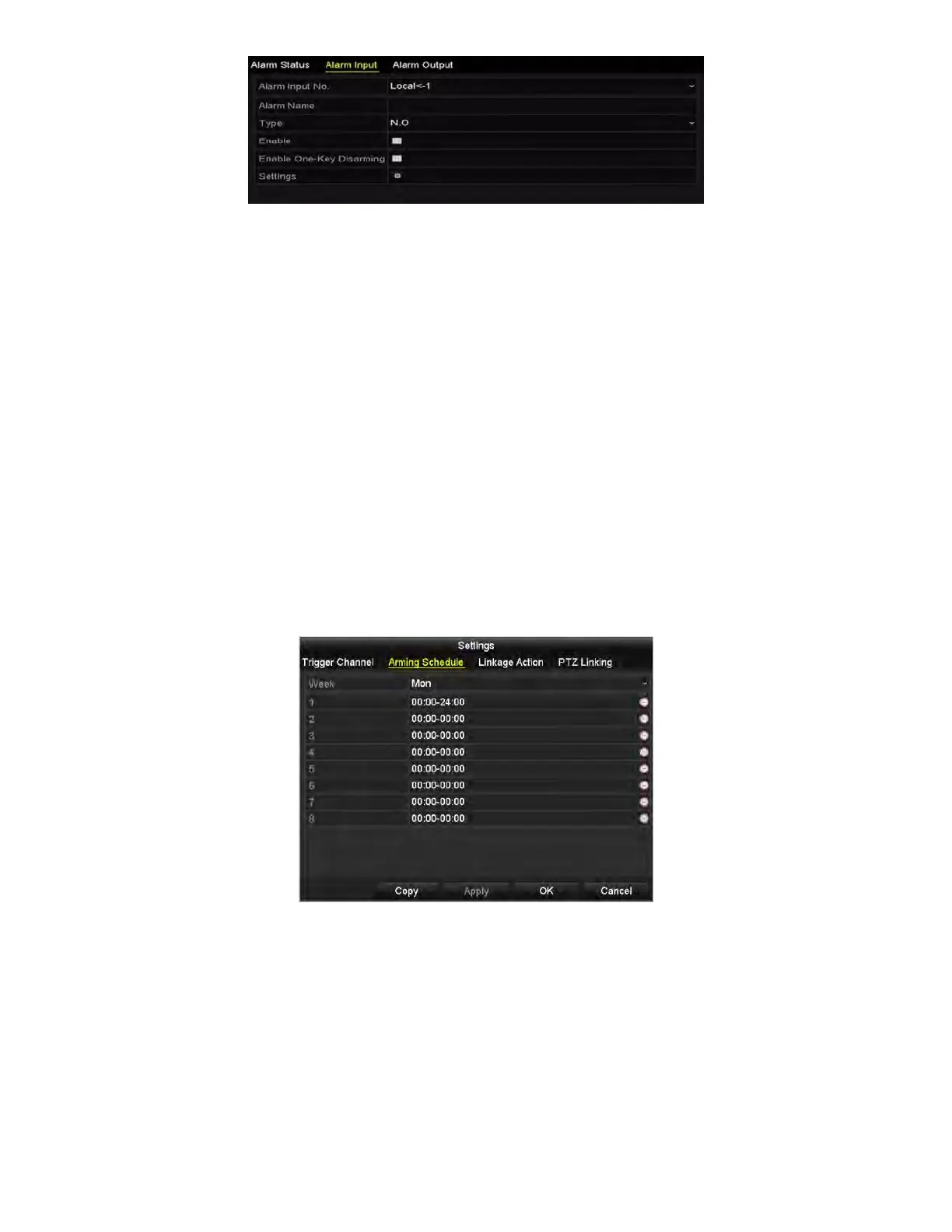

Figure 138, Alarm Input Setup Interface
5. (Optional) Enable the one-key disarming for local alarm input 1 (Local<-1).
1) Check the Enable One-Key Disarming checkbox.
2) Click the Settings button to enter the linkage action settings interface.
3) Select the alarm linkage action(s) you want to disarm for the local alarm input. The selected
linkage actions include Full Screen Monitoring, Audible Warning, Notify Surveillance Center, Send
E-mail, and Trigger Alarm Output.
NOTE: When alarm input 1 (Local<-1) is enabled with one-key disarming, the other alarm input
settings are not configurable.
6. Select the Trigger Channel tab and select one or more channels that will start to record/capture or
become full-screen monitoring when an external alarm is input, and click Apply to save the settings.
7. Select the Arming Schedule tab to set the arming schedule of handling actions.
Figure 139, Set Arming Schedule of Alarm Input
• Choose one day of a week. A maximu of eight time periods can be set within each day. Click Apply
to save the settings.
NOTE: Time periods cannot repeat or overlap.
8. Repeat the above steps to set up arming schedule of other days of a week. You can also use the Copy
button to copy an arming schedule to other days.
9. Select Linkage Action tab to set up alarm response actions of the alarm input (refer to
Chapter Setting
Alarm Response Actions
).
