4.5 Lamp Head/Yoke Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 14 Prima™ Procedural Light Service Manual (man247ra)
DRAFT 6/4/99

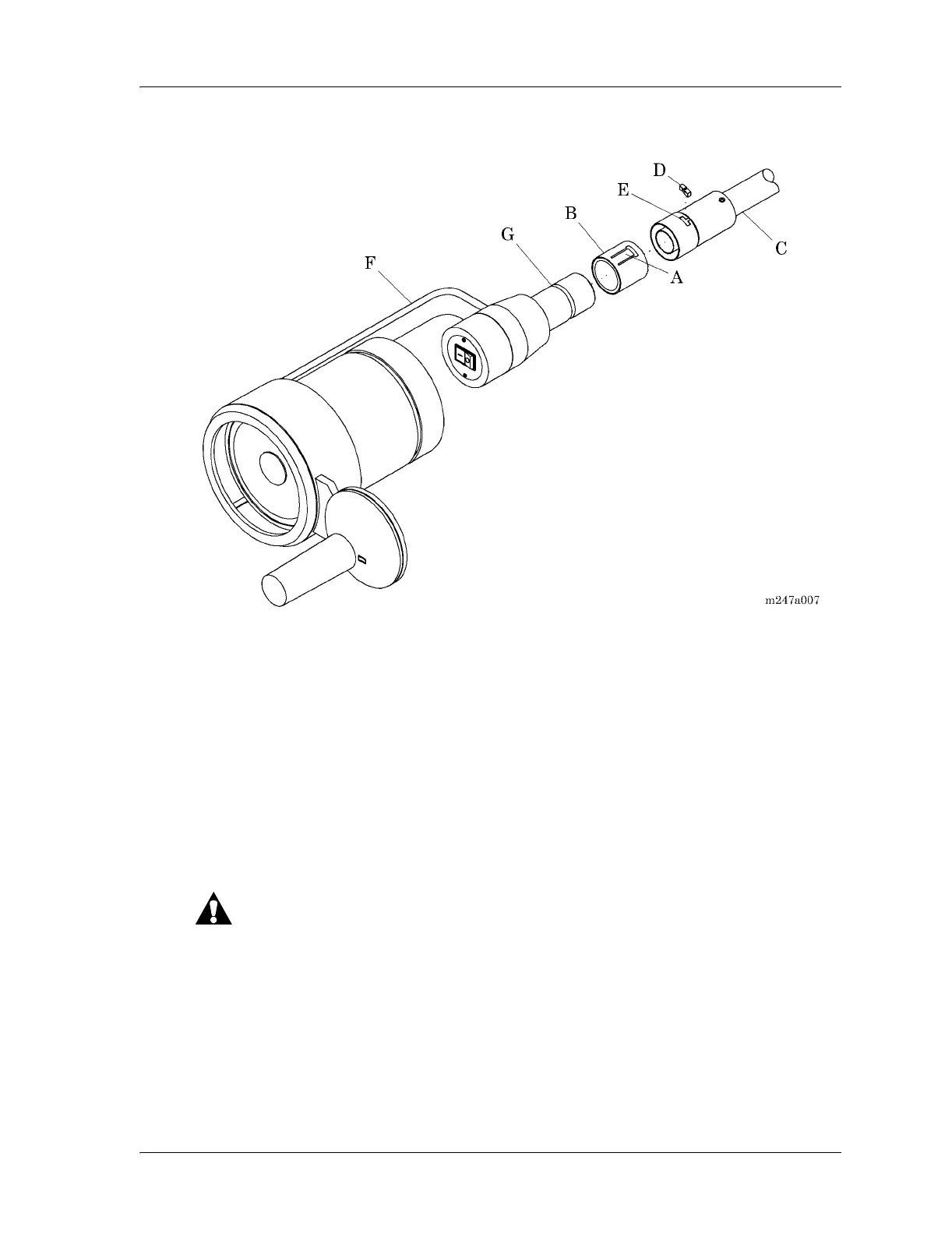

Figure 4-5. Lamp Head/Yoke Assembly
Replacement
1. Install the lamp head/yoke assembly (F) into the rotating arm (C).
2. Align the groove (G) in the lamp head/yoke assembly (F) with the slot (E)
in the rotating arm (C).
3. Install the metal keeper lock (D) into the slot (E).
4. Rotate the plastic collar (B) until the keeper tab (A) snaps into place in the
rotating arm (C).
WARNING:
After completing a repair of the Prima™ Procedural Light, make sure
the unit is in proper operating condition. Failure to do so could result in
personal injury or equipment damage.
5. After completing a repair of the Prima™ Procedural Light, perform the
preventive maintenance checks to make sure the unit is in proper operating
condition. See “Preventive Maintenance Schedule” on page 6-7.
